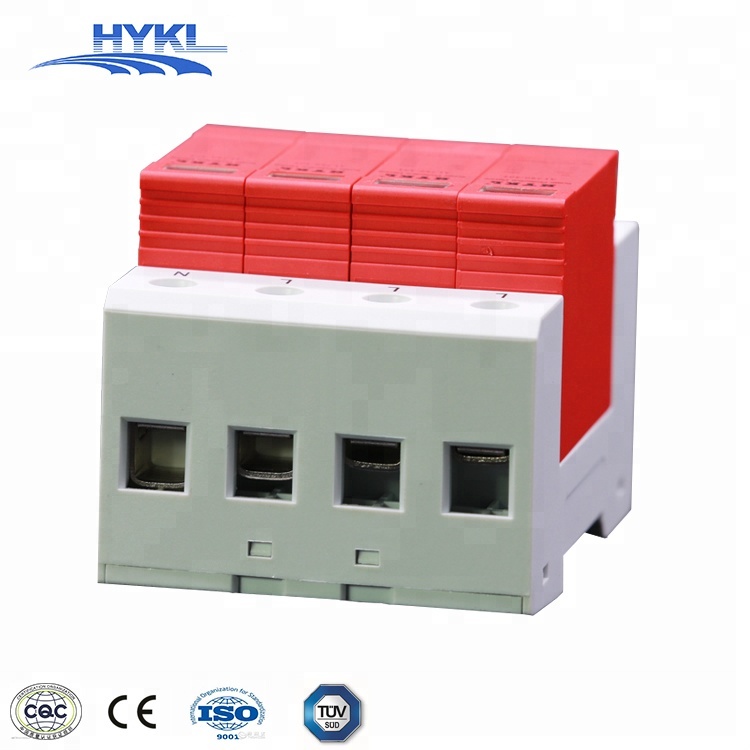

Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL255-60T
Certificate: CE ISO TUV CQC SGS
Warranty: 2 years
OEM/ODM SPD: Welcome 10 years factory
Export to: Poland/ Germany/ Peru/ Brazil etc over 20 countries
Material: PA66 nylon material and PBT engineering plastics
Continuous Operating Voltage UC: 255V
Nominal current(IN): 30KA
Max current (Imax): 60KA
Voltage protection level up: <=1.9KV
Protection Degree: IP 20 Class III D level

Supply Ability

Supply Ability: 1500000 Set/Sets per Month 255Vac In 30KA Imax 60KA 3P+NPE(4P) Surge Protective Device

Packaging & Delivery

Packaging Details: HYKL Type 3/Class D 255Vac In 30KA Imax 60KA 3P+NPE(4P) Surge Protective Device standard seaworthy package, 1pcs individual box, 10pcs in a middle box, 20boxes per carton. Base quotation is blank package. OEM welcomed
Port: Qingdao, Shanghai, Shenzhen, Ningbo, China

Lead Time:

Quantity (Sets)	1 - 500	>500
Est. Time (days)	3	To be negotiated

Technical Parameter

HYKL Type 3/Class D 255Vac In 30KA Imax 60KA 3P+NPE(4P) Surge Protective Device Features

1: Selection of high-quality varistors, stable and reliable performance
2: High lightning current capability, ns response speed
3: Built-in overheat short-circuit device
4: Failure detection indication
5: Optional remote signaling interface and RS485 intelligent lightning protection module
6: 35mm rail mounting, standard modular design.
7: Energy saving, environmental protection, easy installation, no special maintenance
HYKL Type 3/Class D 255Vac In 30KA Imax 60KA 3P+NPE(4P) Surge Protective Device other model for choose

SPD Model	10I	15I	20I	35I	40I	50I	60I
Nominal Capacity (In)	5KA	7.5KA	10KA	15KA	20KA	25KA	30KA
Max Capacity (Max)	10KA	15KA	20KA	35KA	40KA	50KA	60KA
Protection Voltage (Up)	<=0.7KV	<=1.0KV	<=1.2KV	<=1.4KV	<=1.5KV	<=1.8KV	<=1.9KV
Continuous Voltage (Uc)	220v/235v/255v/275v/300v/400v/420v/470v/500v/600v ( it can be customed)
Phase/Pole	1P(L/N); 2P(L+N); 3P(L1+L2+L3+PE); 4P(L1+L2+L3+N+PE)
Installation	Rail 35mm
Material of outer covering	Burning -proof Nylon Standard/High flame retardant, anti-corrosion
Response time	<=25s
Operation environment	40 degree to + 85 degree
Dimension	1P		2P		3P		4P
	18 (27)x60x90mm		36 (54)x60x90mm		54 (81)x60x90mm		72 (108)x60x90m

Detail Image

•

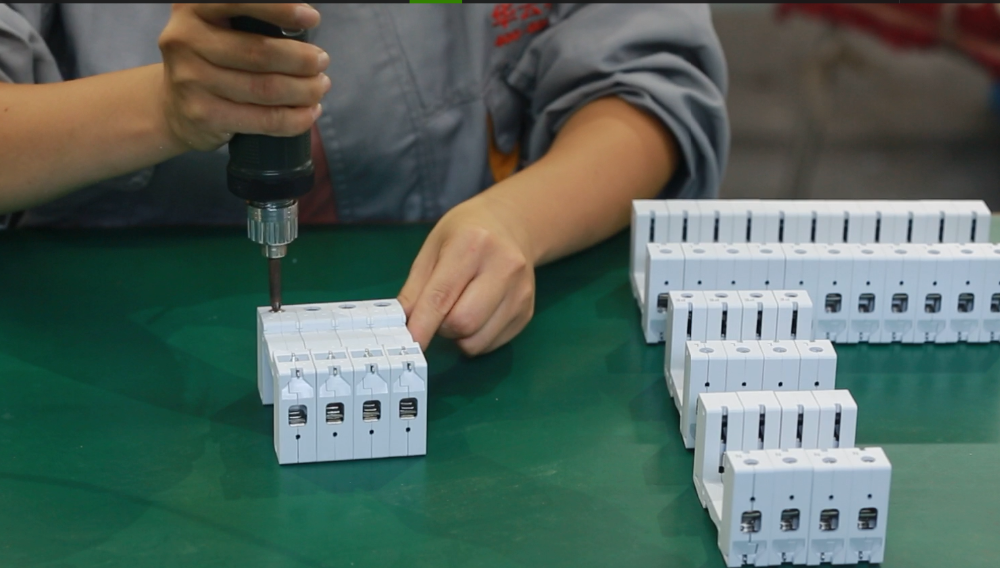

  Hardware installation

•

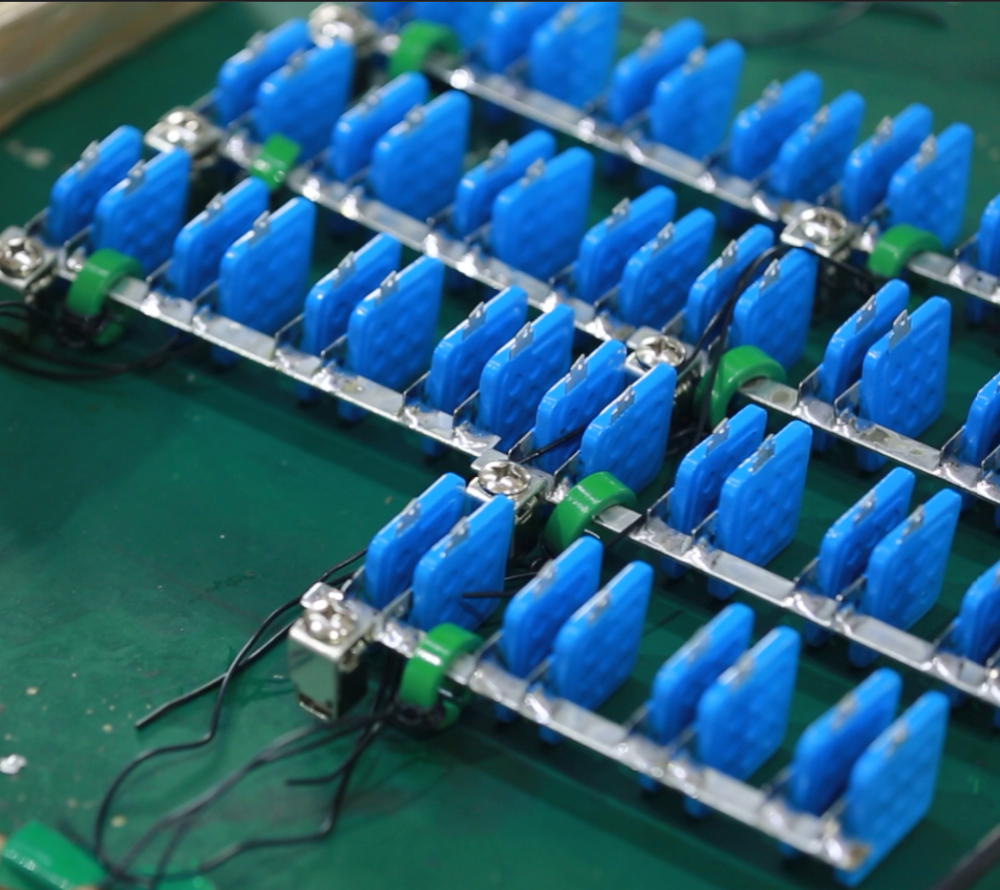

  Encapsulated sheet varistor

•

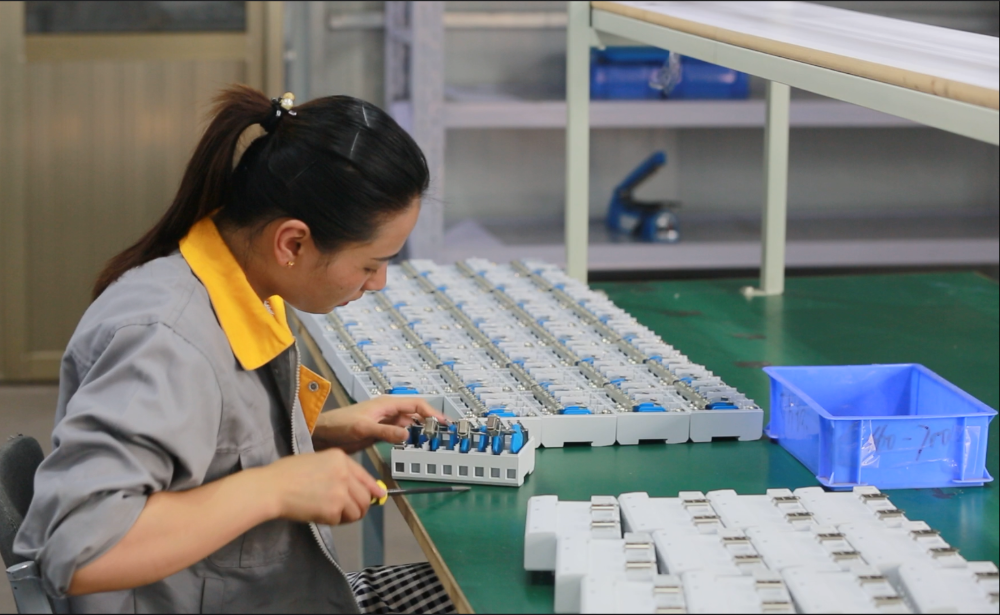

  Backup inside hardware installation
  1P/(L/N), 2P(L+N), 3P(L1+L2+L3), 4P(L1+L2+L3+N)

•

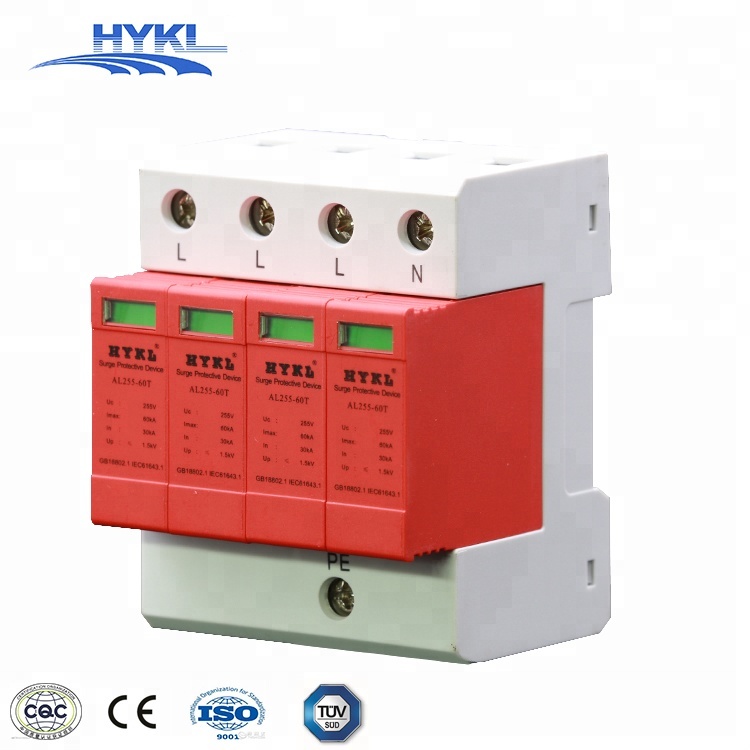

  Finished SPD backup
  1P/(L/N), 2P(L+N), 3P(L1+L2+L3), 4P(L1+L2+L3+N)

•

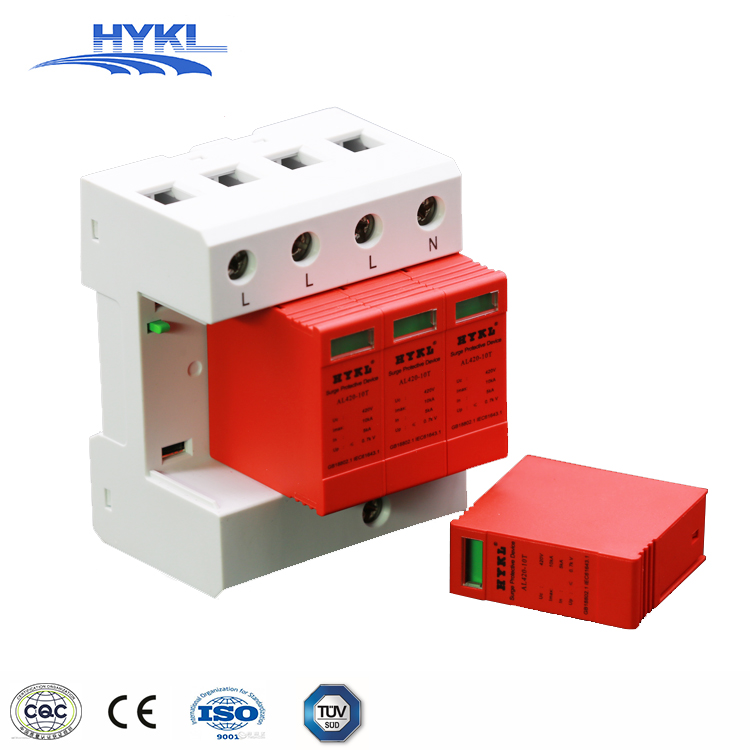

  Pluggable module design

•

  Pluggable module design

•

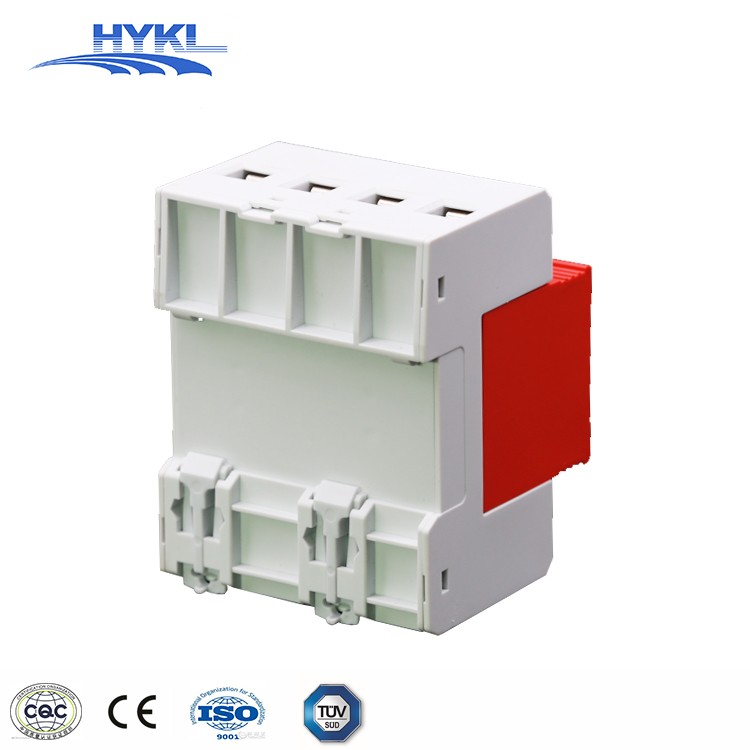

  35mm rail installation:
  Flexible buckle. easy installation and change.

•

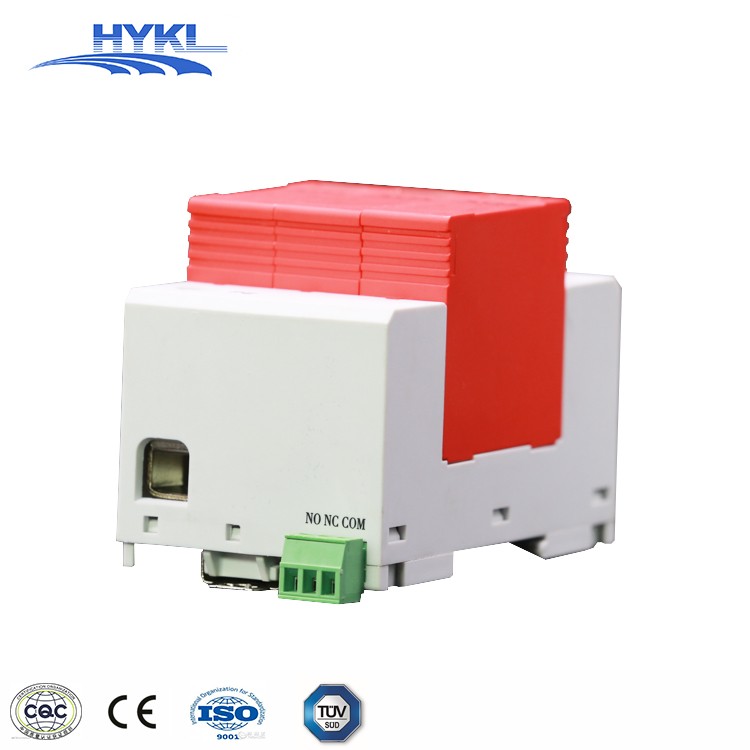

  Green Parts: signal terminal
  Window indicator: Green ( workable)
  Red: Re-place connect with the Terminal Equipment.
  If the surge protective device not work, it will be alarm.

T2 SPD Application

Product Application:

HYKL China best manufacturer price electronic devices Class b 420V 25ka 3 pole ac Surge Protector Device is widely used in mobile communication base stations. Microwave Communications Bureau/Station. Telecommunications room. Industrial mining. civil aviation. financial. Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes

•
•
•

SPD Installation

•
•

Packaging & Shipping

• Inside package is shrink wrapped, outside is Color cartons
• With pallet or without pallets depends customer requiments.
• Shipping, train, express or upon clients' demands.

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products

•

  Varistor testing

•

  12.5 50us combinatorial wave generator

•

  SPD Simulated Lightning current test platform

•

  SPD Routine Tests

•

  Test demonstration system of intelligent lightning protection device

•

  Programmable salt mist test machine

HYKL Certification

With strict management, standardized production workshops, advanced ERP management system, efficient workers, and professional technical personnel. All of our surge protective device have passed ISO14001:2015, OHSAS18001:2007; ISO9001:2015, CQC, TUV, CE Certification
