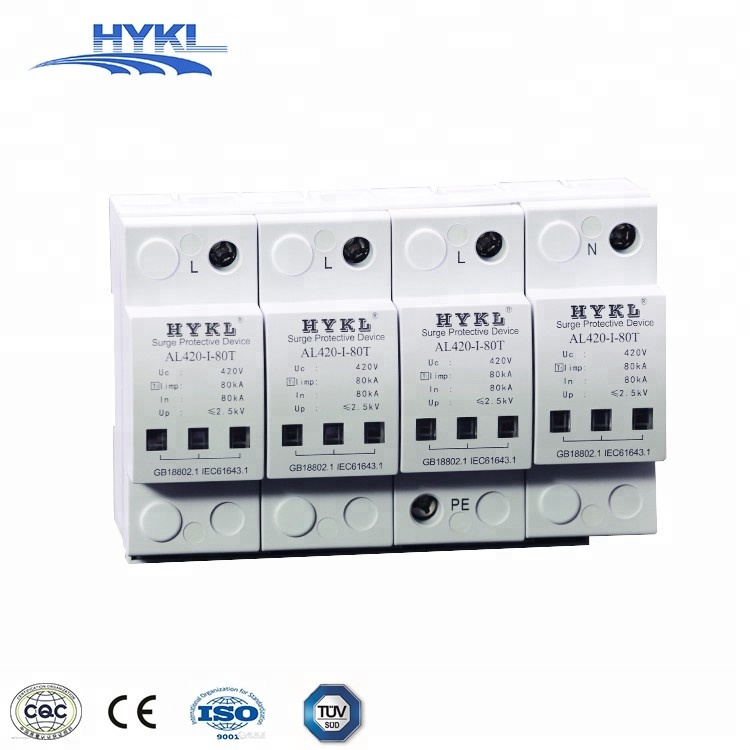

Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL420-I-15T
Certificate: CE ISO TUV CQC SGS
export to: poland germany france etc
Nominal Operating Voltage Un: 220/380 V
Rated Operating Voltage UC: 275V
Nominal discharge current: 15KA
Voltage protection level Up: <=1.5KV
Installation: Standard Rail 35mm
Response times: 20S
Test Stardard: GB18802.1-2011and IEC61643.1
Operating Environment: -40 degree to + 85 degree

Packaging & Delivery

Selling Units: Single item
Single package size: 10X10X10 cm
Single gross weight: 0.890 kg

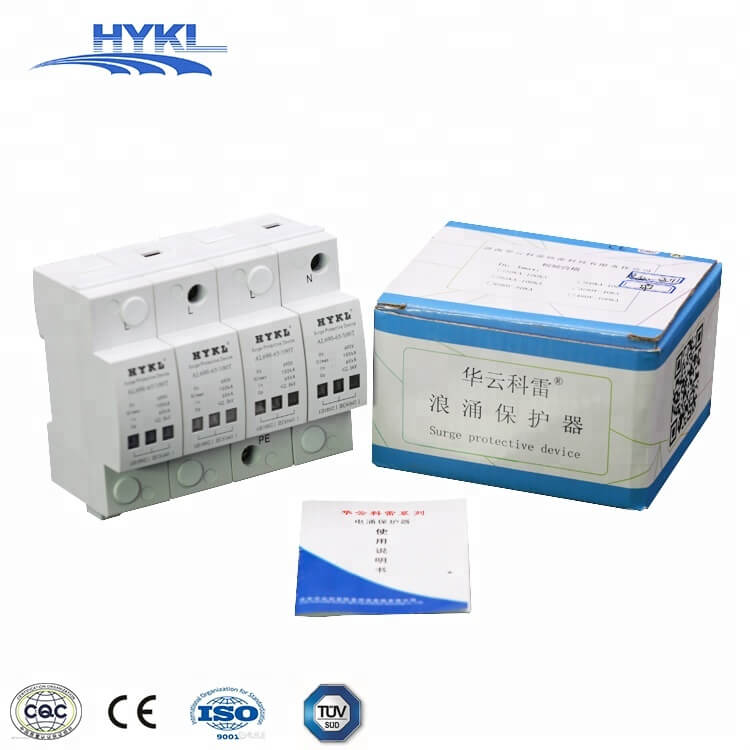

Packaging Details: HYKL Highly cost effective outdoor lightning protection Surge Protection Device
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/ Corrugated carton

Lead Time:

Quantity (Sets)	1 - 1000	>1000
Est. Time (days)	7	To be negotiated

Technical Parameter

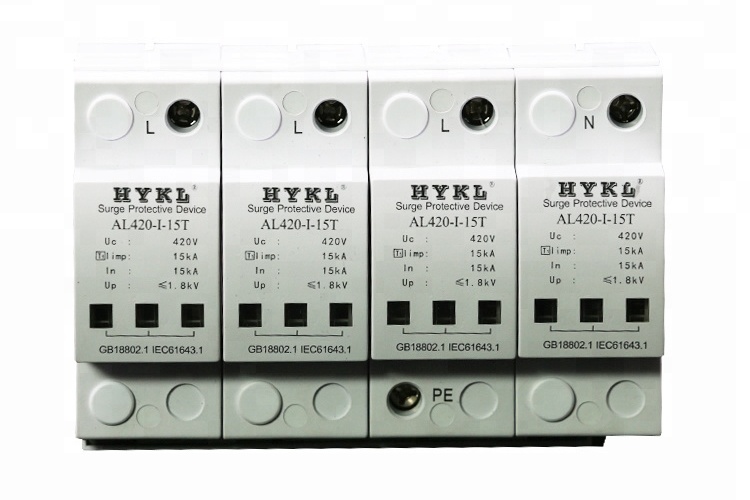

SPD Type&Spec.	HYKL Highly cost effective outdoor lightning protection Surge Protection Device

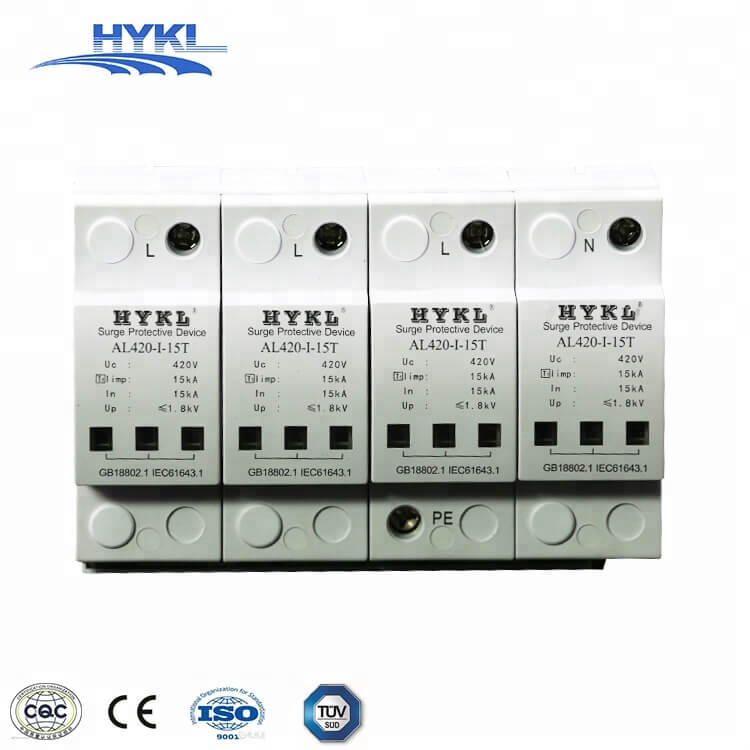

SPD Model	AL420-I-15T-4P
Phase/ Pole	1P/ 2P/ 3P/ 4P+NPE
Lightning Impulse Current (KA)	15KA
Rated Operating Voltage (UC)	380V/ 400V
Continuous Operating Voltage	420V
Voltage protection Level up (UP)	<=2.5KV
Response Times	25S
Test Standard	EC61643-1/ GB18802-1
Operating Environment	40 degree to + 85 degree
Max connection Line	35mm2 hard wire/ 35mm2 strand wire copper line
Recommend connection Line	16mm2 hard wire/ 25mm2 strand wire copper line
Installation	Standard Rail 35mm
Material of outer covering	Burning -proof Nylon (meet UL94V-0 standard)
Electrical Life	More than 8000times
Mechanical Life	More than 2000times
Dimension(W)X(H)X(D)	1P: 18X66X90MM, 2P: 36X66X90MM, 3P: 54X66X90MM, 4P: 72X66X90MM
Protection Level	Class I/ B/ level IP20

HYKL Highly cost effective outdoor lightning protection Surge Protection Device Manual:

HYKL Highly cost effective outdoor lightning protection Surge Protection Device according to DIN EN 61643-11 requirements, is the level of mine-resistant men. It protects electrical equipment from various voltage surges. Available from a single module to 4 different models of the module.
It is a special lightning protection device for IN-C-S, TN-S, TT and IT systems.
It contains a high nonlinearity (a> 30) of zinc oxide varistor. The device has a short response time, low level of protection, high-pass flow and long life advantages, especially when lightning surge through the protector, the follow-up current does not appear
If the lightning arrester as a result of overload deterioration, built-in circuit breaker will be timely action to interrupt the connection with the power supply, while fault indication display window color from green to red.

HYKL Highly cost effective outdoor lightning protection Surge Protection Device Features

1. built-in over-current overheating, temperature control circuit technology.
2. the module design, easy installation, online replacement.
3. low leakage current, fast response time, low residual voltage.
4. warning indicator device, green (normal), red (fault).
5. the new technology, high-energy, gap discharge electrode (N-PE).

Detail Image

•

  Flame retardant aluminum strip

•

  Varistor pre-installation test

•

  Hardware installation

•

  Varistor installation

•

  Inside structures

•

  Backup inside hardware installation

•

•

  SPD backup structure
  35mm rail installation:
  Flexible buckle. easy installation and change.

SPD Installation

HYKL Highly cost effective outdoor lightning protection Surge Protection Device Installation:

1: The power must be cut off before installation, no live operation.
2: the surge protective device recommended to connect the fuse circuit breaker in front of the lightning protection SPD.
3: When surge protective device installing, please connect according to the installation diagram. L1 L2 L3 is the phase line and PE is the ground line. Do not connect wrongly. After the installation is completed, close the circuit breaker (fuse) switch and check that the working status is normal.
4: After surge protective device installation, insert the SPD in place and check whether the SPD is working properly.
5: During the surge protective device work situation,pls check and view the status of the fault display window regularly. If the window become red color or Remote signal output terminal alarm signal,pls replace the SPD.
6: Parallel power supply lightning protection modules should be installed in parallel, or they can be connected in double wiring. In general, just connect any of the two terminals (also Kevin wiring). The connection cable should be solid and reliable, and it must be short and straight.

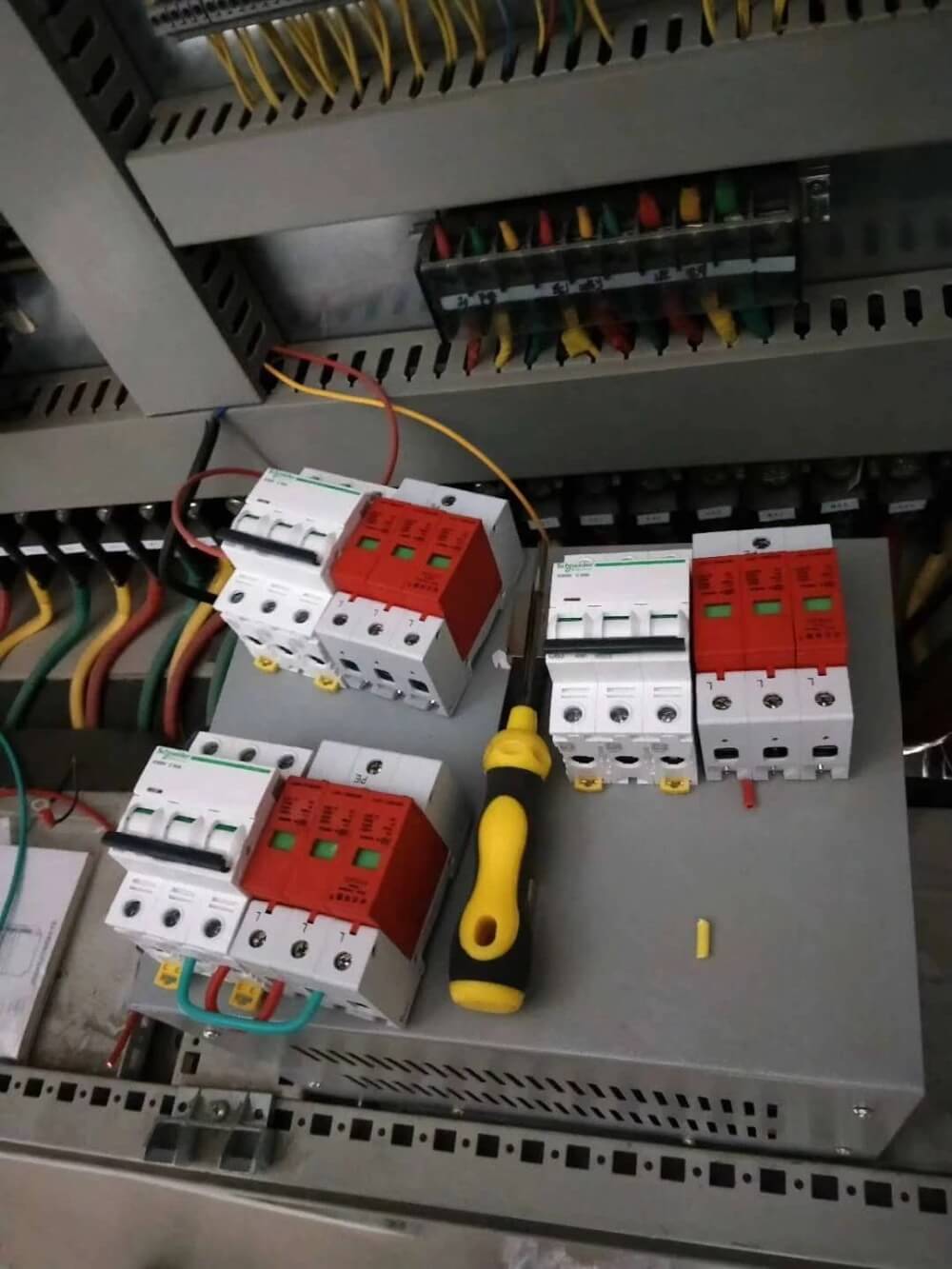

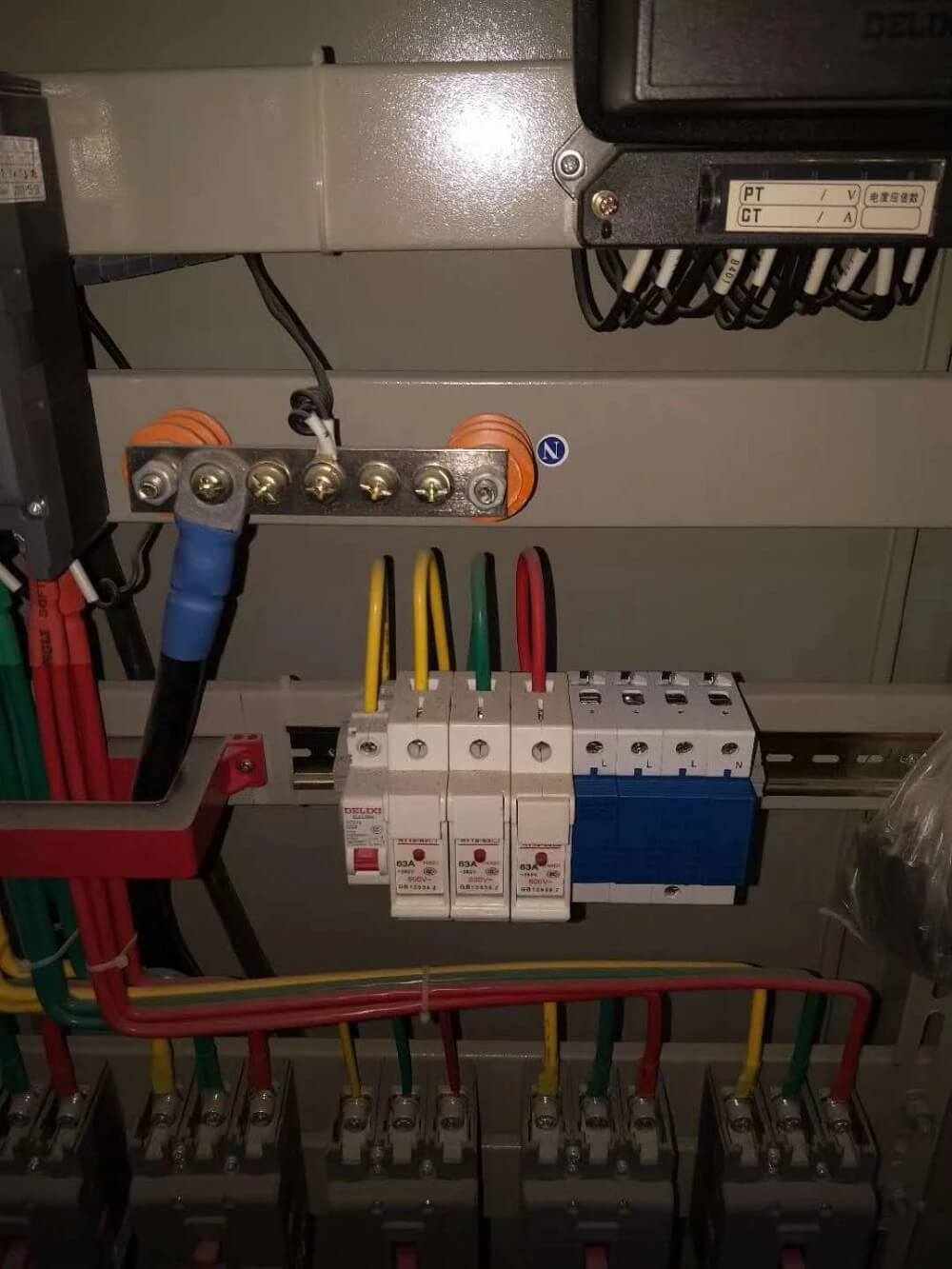

HYKL Highly cost effective outdoor lightning protection Surge Protection Device Installation photo show:

•
•

SPD Application

This product is widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.

Such as various power distribution stations, power distribution rooms, power distribution cabinets, switch boxes, and other equipment that are important and vulnerable to lightning strike

•

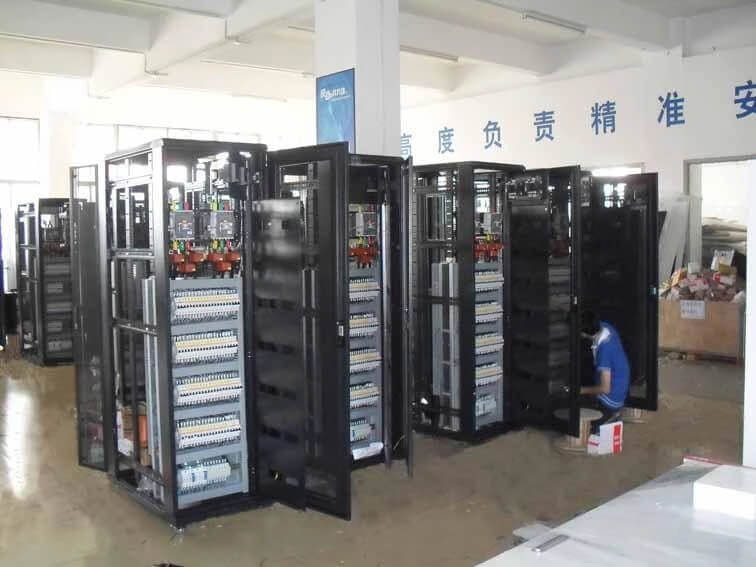

  Electricity Distribution box

•

  Water Power /hydropower

•

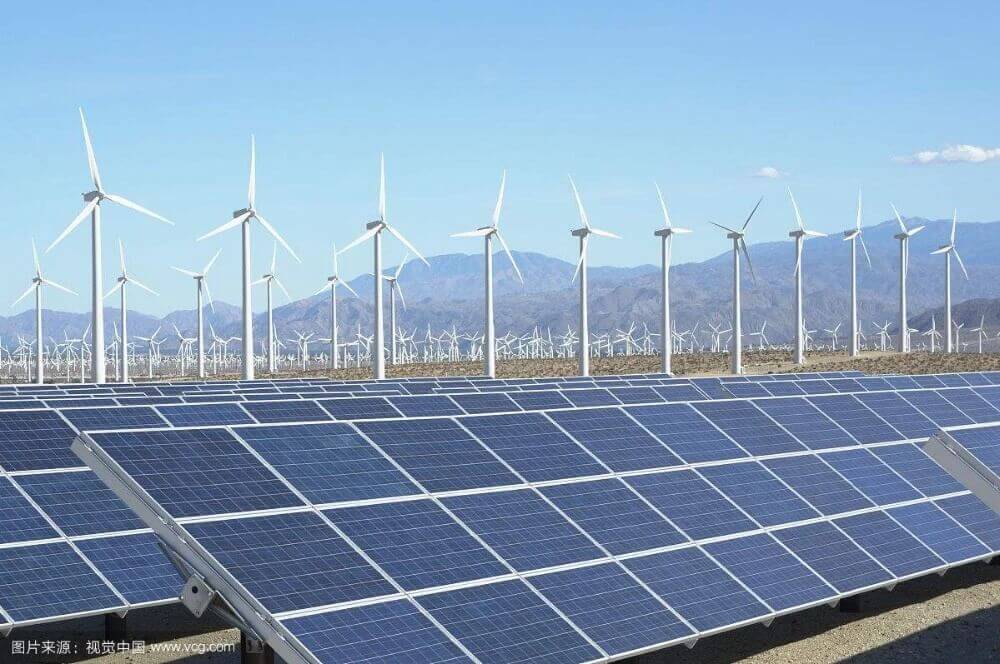

  PV Solar panel / Wind Power

•

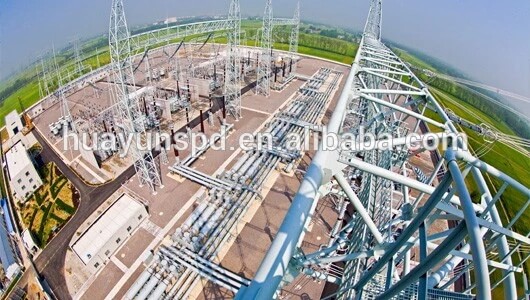

  State Electrical Grid

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products.

•

  Varistor testing

•

  12.5 50us combinatorial wave generator

•

  SPD Simulated Lightning current test platform

•

  SPD Routine Tests

•

  Test demonstration system of intelligent lightning protection device

•

  Programmable salt mist test machine
