Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL420-I-80T
Certificate: CE ISO TUVE CQC
Warranty: 2 Years
OEM/ODM: Workable, China No.1 SPD Factory
Export to: Germany Spaina, Netherlands over 30 countries
Continuous Voltage: 420V
Lihgtning Impulse (limp): 80KA
Voltage protection level Up: <=1.5KV
Response times: <=25S
Test Standard: GB18802.1-2011 and IEC61643.1
Protection Degree: IP20

Packaging & Delivery

Selling Units: Single item
Single package size: 10X10X10 cm
Single gross weight: 0.890 kg
Packaging Details: HYKL Power protection 220v surge arrester obo 20ka 100ka spd
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/ Corrugated carton

Lead Time:

Quantity (Sets)	1 - 1000	1001 - 3000	3001 - 5000	>5000
Est. Time (days)	7	15	30	To be negotiated

How to choose SPD

How to choose the best suitable SPD Model:

The diagram above shows a building fitted with external lightning protection. The maximum lightning strike of 200kA 10/350μs which can strike the building will dissipate through the external lightning conductor system, 50% will go to earth via the earth rods. The remaining 50% will enter the building directly on to the main incoming panel as the external lightning protection system is cross-bonded to the main incoming earth bar. This is why it is mandatory to install a T1+2+3 combined lightning and surge arrester on the main incoming panel. The maximum rating of a combined lightning and surge arrester is 100kA 10/350μs.

If the building has sub-distribution boards more than 10 metres away from the incoming panel, these boards will require additional protection. Usually a Type 2 surge arrester is sufficient here unless you are feeding outside final circuits, when a combined Type 1+2+3 surge arrester will have to be fitted.

If you have any doubts please call our technical helpline direct on +86 139 6918 8486, Email: huayunspd(at)163.com

Technical Parameter

1) HYKL Power protection 220v surge arrester obo 20ka 100ka spd Application:

SPD Limp (10/350) gap type surge protector with high lightning current capacity is suitable for the Class 1 lightning protection of the power system.
SPD is widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.
Such as various power distribution stations, power distribution rooms, power distribution cabinets, switch boxes, and other equipment that are important and vulnerable to lightning strikes.

2) HYKL Power protection 220v surge arrester obo 20ka 100ka spd Features:

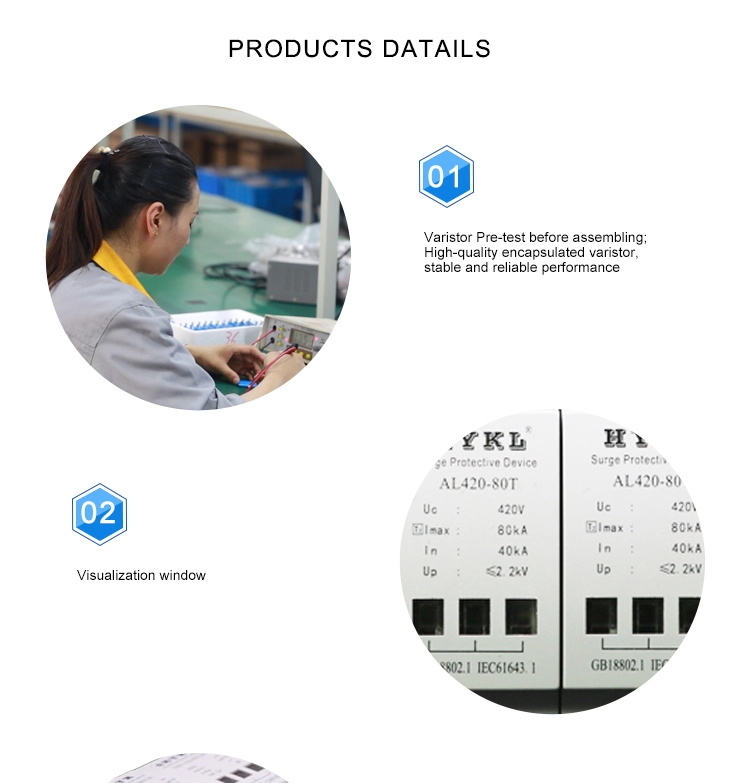

1: select of high-quality varistors, stable and reliable performance
2: High lightning current capability, ns response speed
3: Built-in overheat short-circuit device
4: Failure detection indication

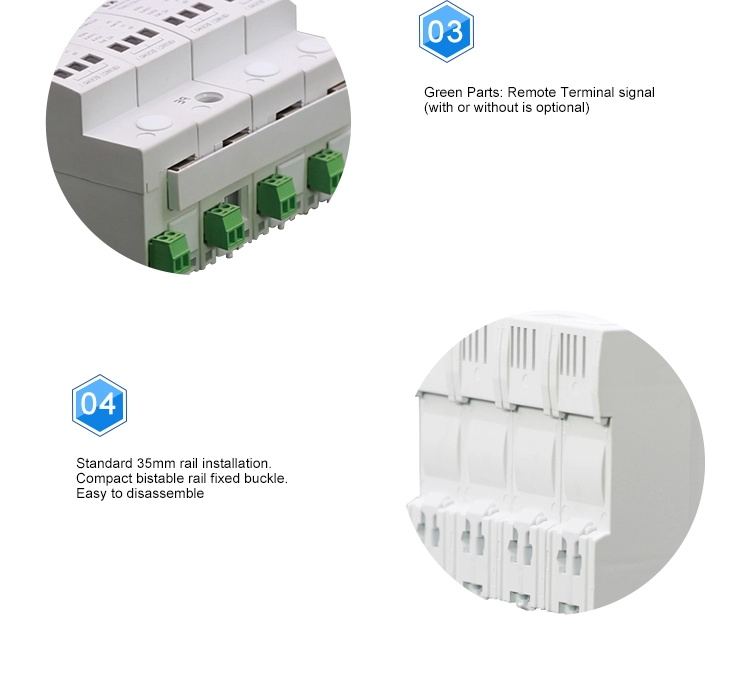

5: Optional remote signaling interface and RS485 intelligent lightning protection module
6: 35mm rail mounting, standard modular design.
7: Energy saving, environmental protection, easy installation, no special maintenance

3) HYKL Power protection 220v surge arrester obo 20ka 100ka spd Technical Parameter:

The SPD Specification	HYKL
	HYKL10/ 350-60I	HYKL10/ 350-70I	HYKL10/ 350-100I
Lightning Impulse Current (Limp KA10/ 350μs)	60	70	100 (In: 100KA)
Protection Level Up (KV)	2.5	2.5	2.5
Phase/Pole	1P/ 2P/ 3P/ 4P+N PE
Rated operating Voltage	220V/230V/380V/400V 50-60Hz
Continuous operating Voltage	275V (single phase to grounding) 50-60Hz
Response times	<=25s
Material of outer Covering	Burning -proof Nylon Standard
Installation	Rail 35mm
Operatatin Environment	-40 degree to + 85 degree
Test standard	IEC61643-1/ GB18802-1
Protection Level	IP20

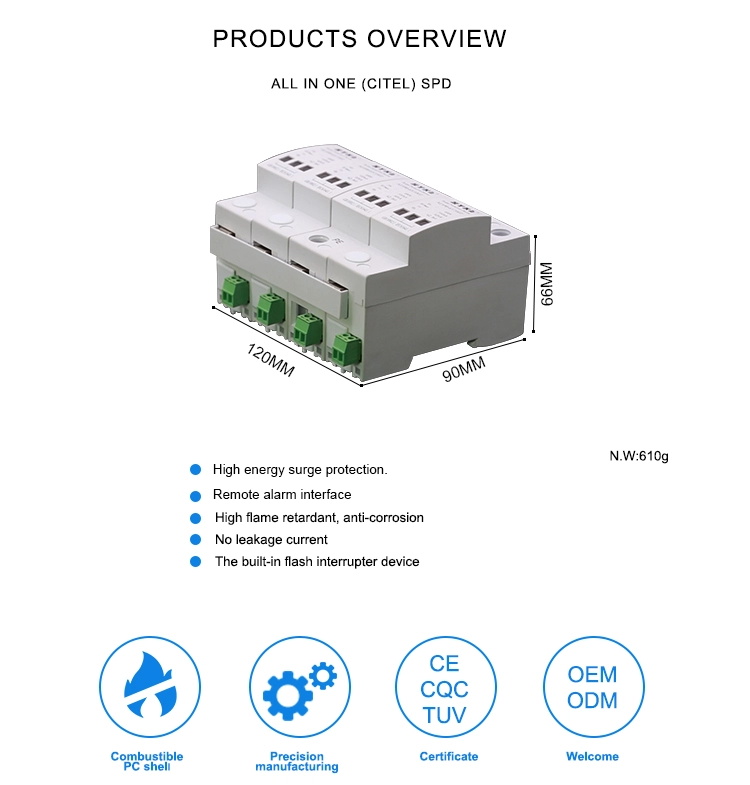

All in one SPD detail

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products.
