Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL420-25T
Certificate: CE ISO TUV CQC SGS
Phrase: 3P (1P/2P/4P)+ NPE
SPD Nominal Operating Voltage Un: 220/380V
SPD Rated Operating Voltage UC: 500V
Nominal discharge current: 25KA
Max discharge current: 25KA
Voltage protection level Up: 2.5KV
Response times: 20S
Test Stardard: GB18802.1-2011and IEC61643.1
Operating Environment: -40 degree to + 85 degree

Supply Ability

Supply Ability: 150000 Set/Sets per Month HYKL outdoor lightning 420v 20ka 25KA ac surge protector device

Packaging & Delivery

Packaging Details HYKL outdoor lightning 420v 20ka 25KA ac surge protector device
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/Corrugated carton
Port: Qingdao China

Lead Time:

Quantity (Sets)	1 - 1000	>1000
Est. Time (days)	7	To be negotiated

T1 Technology Data

•

• Brand	HYKL
  Model	AL420- I- 25T
  Phase/ Pole	1P/2P/ 3P/4P
  Iimp	25KA
  Continuous Voltage (Uc)	420V
  Voltage Protection Level (Up)	<=1.8KV
  Responstime	<=25S
  SPD normative definition	IP20 Class I B Type 1

HYKL outdoor lightning 420v 20ka 25KA ac surge protector device Mainly Features:

1) Large discharge energy
2) Gap discharge without leakage current
3) High flame retardant, anti-corrosion
4) Standardized 35mm rail mounting
5) High quality graphite,Reliable quality and long service life

HYKL outdoor lightning 420v 20ka 25KA ac surge protector device other model for choose.

The SPD Specification	HYKL
	HYKL10/ 350-12.5I	HYKL10/ 350-15I	HYKL10/ 350-25I	HYKL10/ 350-40I	HYKL10/ 350-50I
Lightning Impulse Current (Limp KA10/ 350μs)	12.5KA	15KA	25KA	40KA	50KA
Voltage Protection Level (UP)	<=1.5kv	<=1.5kv	<=1.8kv	<=2.2kv	<=2.5kv
Phase/Pole	1P (L/N); 2P (L+N); 3P(L1+L2+L3+PE); 4P (L1+L2+L3+N+PE)
Rated operating Voltage	380V/400V
Continuous operating Voltage	220v/ 235v/ 255v/ 275v/ 300v/ 400v/ 420v/ 470v/ 500v/ 600v (it can be customed)
Response times	<=25s
Operatatin Environment	-40 degree to + 85 degree
Installation	Rail 35mm
Material of outer Covering	Burning -proof Nylon Standard
Test standard	IEC61643-1/ GB18802-1
Dimension	1P	2P	3P	4P
	18x60x90mm	36x60x90mm	54x60x90mm	72x60x90mm
Protection Level	Class I /B/IP20

Detail Image

•

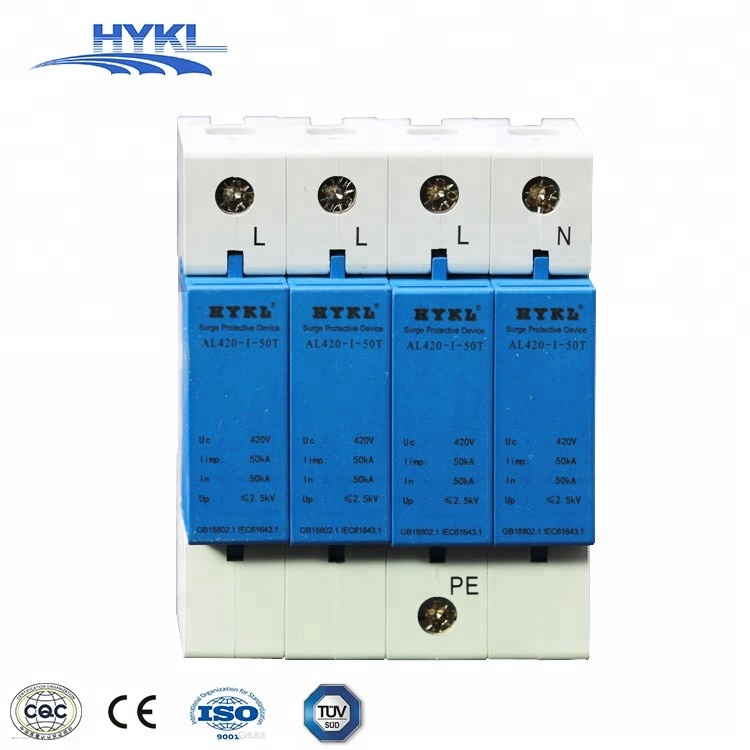

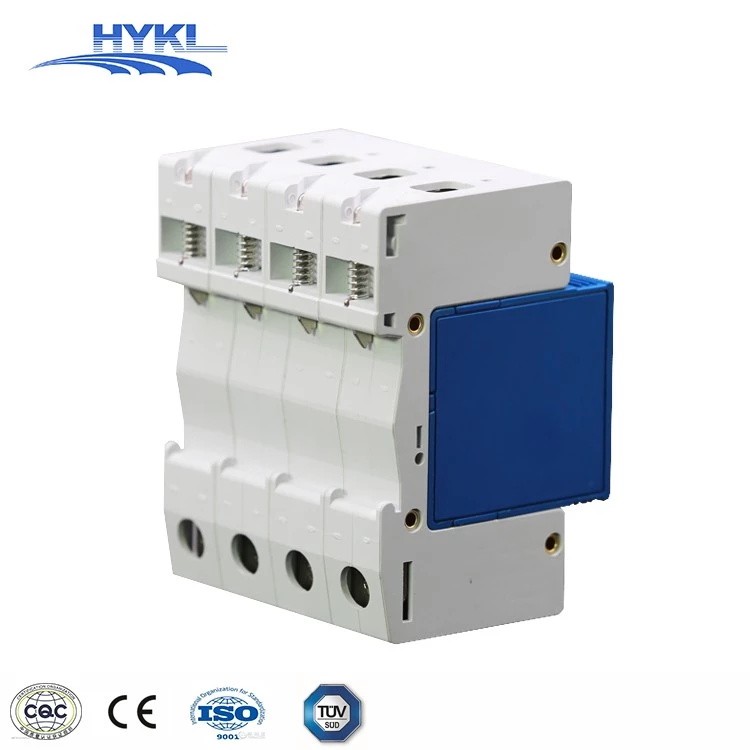

  Surge protector Device front cover.

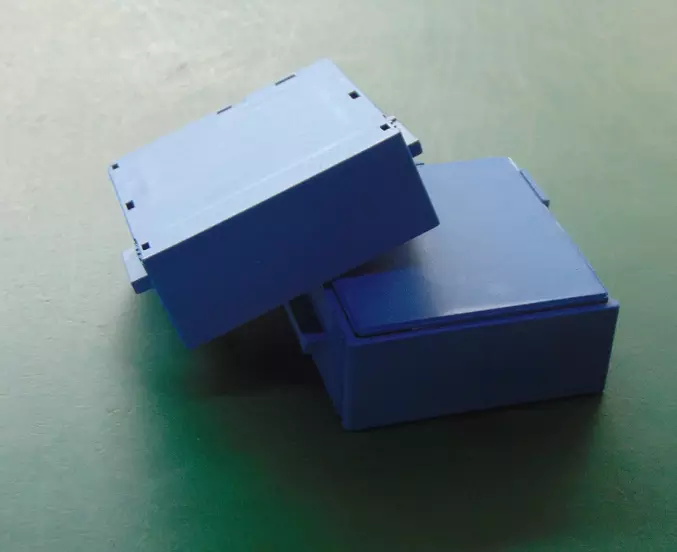

  Its Burning -proof Nylon Standard

•

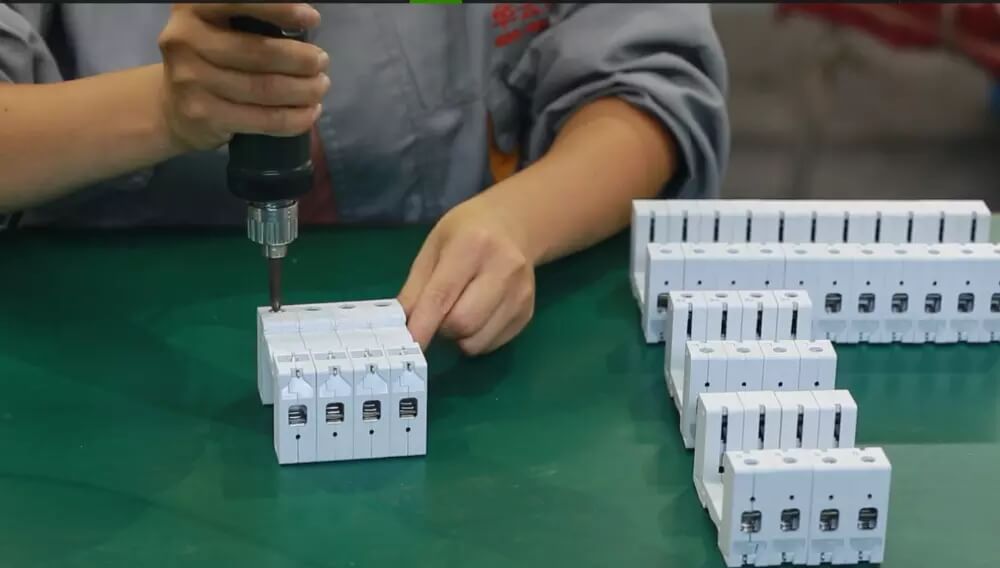

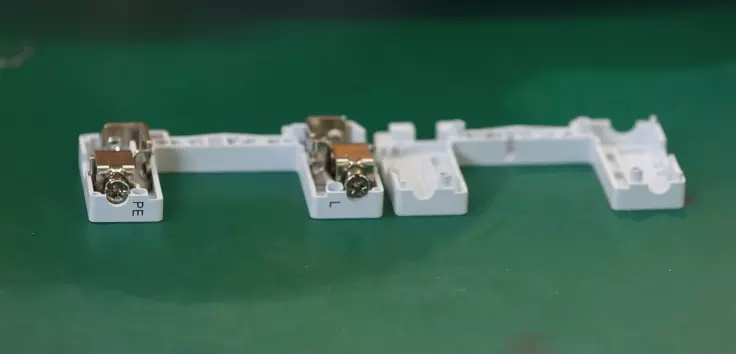

  Hardware installation

•

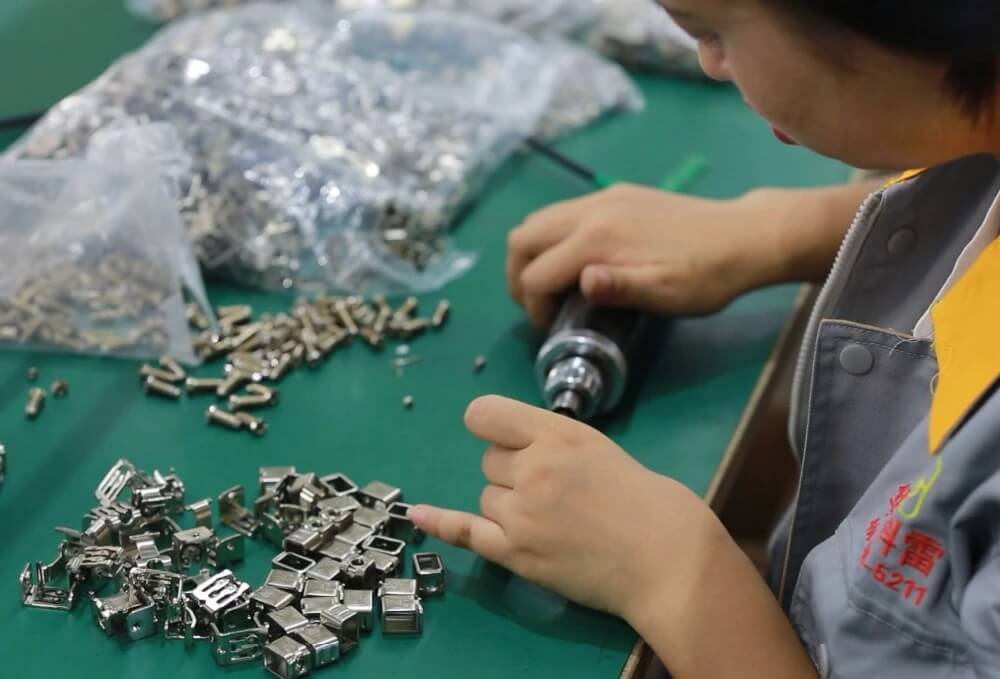

  Backup inside hardware installation

•

•

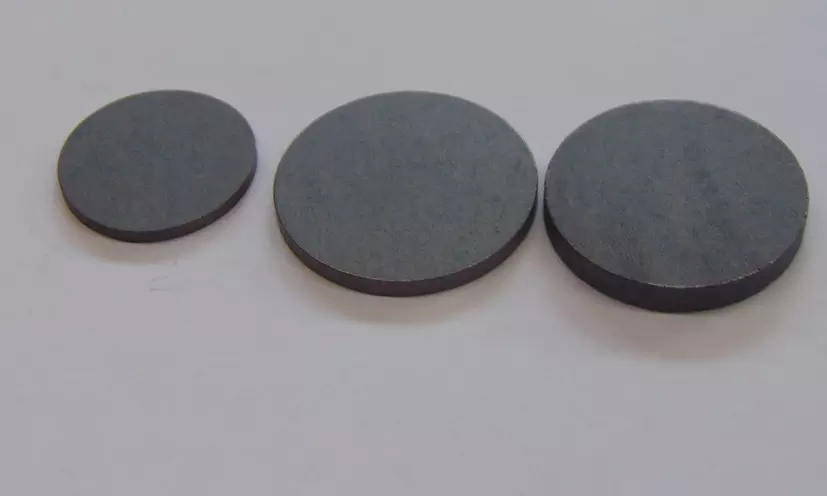

  Graphite resistance
  The spd most important parts

•

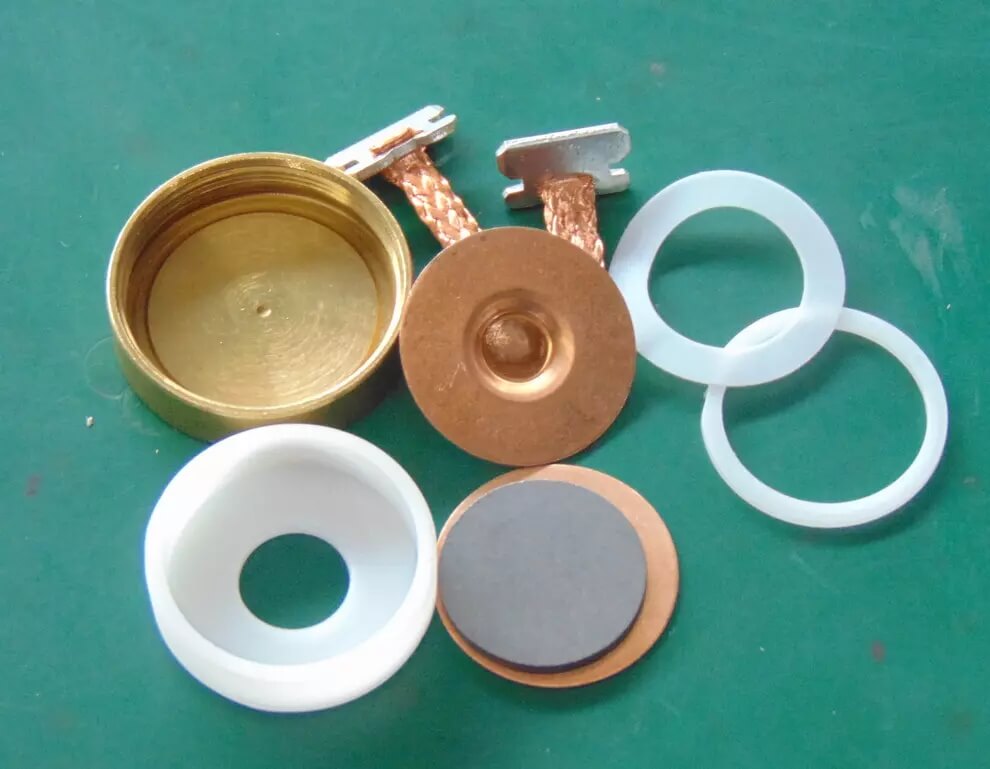

  The SPD inside hardware parts

•

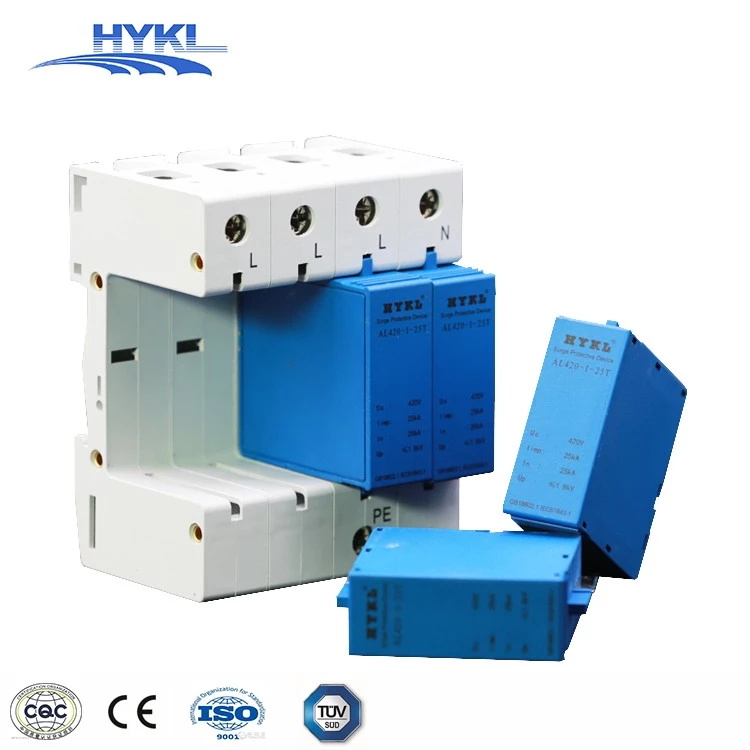

  Pluggable module design

•

  35mm rail installation:
  Flexible buckle. easy installation and change.

SPD Application

This product is widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.

Such as various power distribution stations, power distribution rooms, power distribution cabinets, switch boxes, and other equipment that are important and vulnerable to lightning strike

•

  Electricity Distribution box

•

  Water Power /hydropower

•

  PV Solar panel / Wind Power

•

  State Electrical Grid

SPD Installation

1: The power must be cut off before installation, no live operation
2: the surge protective device recommended to connect the fuse circuit breaker in front of the lightning protection SPD.

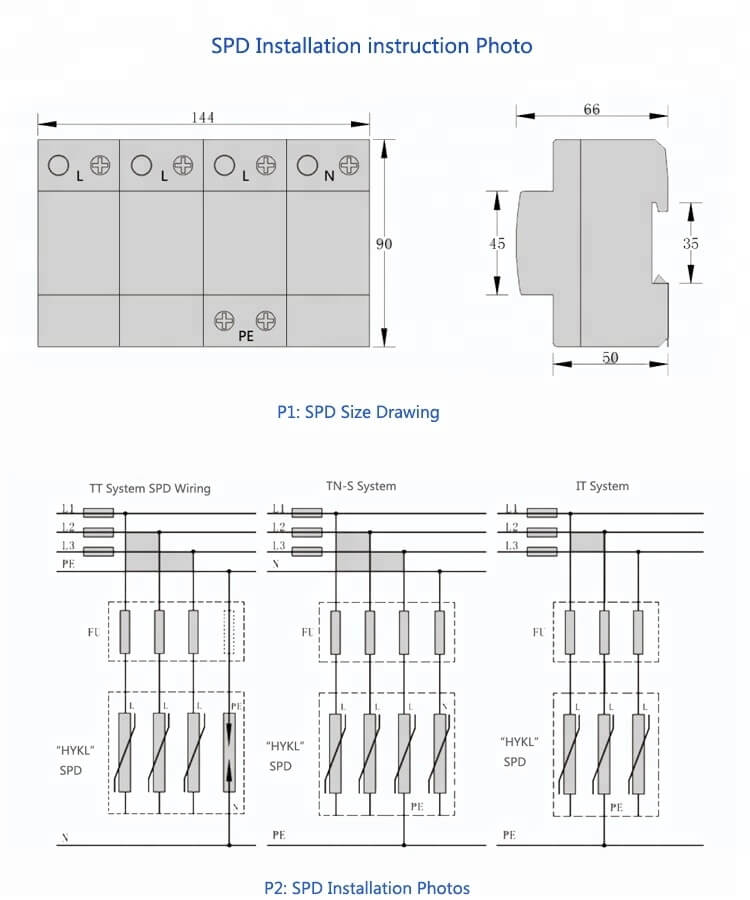

3: When surge protective device installing, please connect according to the installation diagram. L1 L2 L3 is the phase line and PE is the ground line. Do not connect wrongly. After the installation is completed, close the circuit breaker (fuse) switch and check that the working status is normal.
4: Parallel power supply lightning protection modules should be installed in parallel, or they can be connected in double wiring. In general, just connect any of the two terminals (also Kevin wiring). The connection cable should be solid and reliable, and it must be short and straight.
