HYKL 110V Surge Protector 220v Dc Ac Surge Protective Device SPD
HYKL 110V Surge Protector 220v Dc Ac Surge Protective Device SPD
HYKL 110V Surge Protector 220v Dc Ac Surge Protective Device SPD
HYKL 110V Surge Protector 220v Dc Ac Surge Protective Device SPD
HYKL 110V Surge Protector 220v Dc Ac Surge Protective Device SPD
HYKL 110V Surge Protector 220v Dc Ac Surge Protective Device SPD
  • Features
  • Inquiry

Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL220-20T
Certificate: CE ISO TUV CQC SGS ROHS
Warranty: 12 Months
Phase: L+N, L+L+L, L+L+L+N
Continus Voltage: 420V
Protection Degree: Class II/Type 2/B
Nominal Discharge Current ln: 10KA
Max Discharge Current Imax: 20KA
Voltage Protection Level Up: <=1.8kv
Surge Protector: Surge Protection Device

Packaging & Delivery

Selling Units: Single item
Single package size: 10X10X10 cm
Single gross weight: 0.500 kg

Packaging Details HYKL 110V Surge Protector 220v dc ac surge protective device spd
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/Corrugated carton

Lead Time:

Quantity (Sets) 1 - 300 301 - 500 501 - 800 >800
Est. Time (days) 3 5 7 To be negotiated

HYKL 110V Surge Protector 220v dc ac surge protective device spd

HYKL 110V Surge Protector 220v dc ac surge protective device spd Features:

1: Selection of high-quality varistors, stable and reliable performance
2: High lightning current capability, ns response speed
3: Built-in overheat short-circuit device
4: Failure detection indication
5: Optional remote signaling interface and RS485 intelligent lightning protection module
6: 35mm rail mounting, standard modular design.
7: Energy saving, environmental protection, easy installation, no special maintenance

HYKL 110V Surge Protector 220v dc ac surge protective device spd Technical Parameter

The SPD Specification HYKL
10I 15I 20I 35I 40I 50I 60I 65I 80I
Nominal discharge current In (KA, 8/20μs) 5 7.5 10 15 20 25 30 35 40
Max discharge currentImax (KA, 8/20μs) 10 15 20 35 40 50 60 65 80
Protection Level Up (KV) 0.7 1.0 1.5 1.5 1.8 1.8 1.91.9 1.9 2.2
Phase/ Pole 1P/ 2P/ 3P/ 4P+N PE
Rated operating Voltage 220V/ 230V/ 380V/ 400V   50-60Hz
Continuous operating Voltage 385/420V   50-60Hz
Response times 25s
Max Connection Line 35mm2 hard/ strand wire copper line
Recommened connection Line 16mm2 hard/ strand wire copper line
Material of outer covering Burning -proof Nylon Standard
Installation Rail 35mm
Operatatin Environment -40 degree to + 85 degree
Test standard IEC61643-1/ GB18802-1
Protection Level

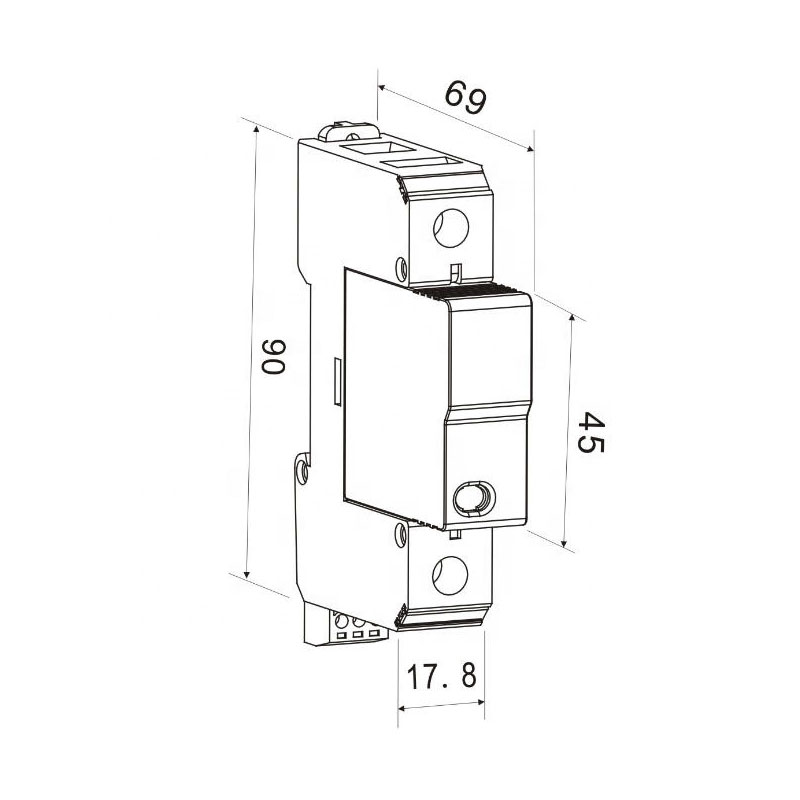

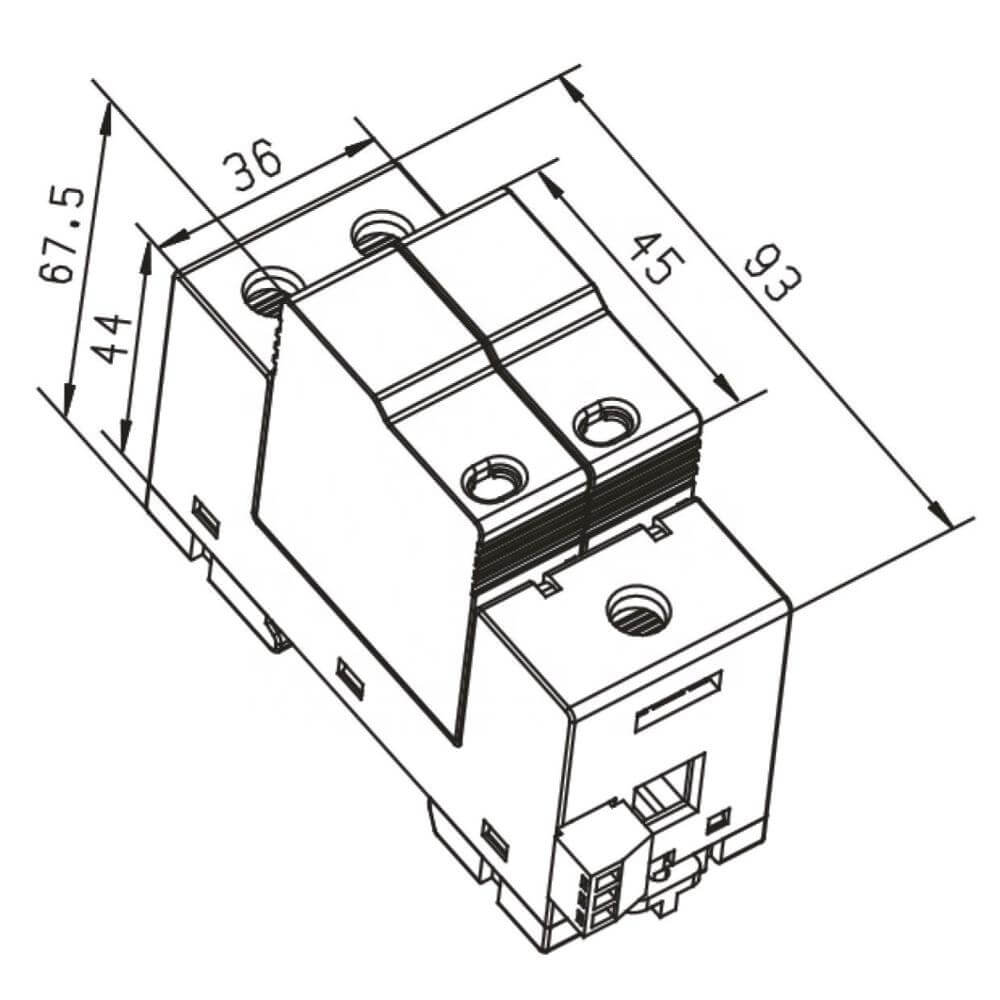

T2 Detail Image

T2 SPD Application

HYKL 110V Surge Protector 220v dc ac surge protective device spd Application:

HYKL 110V Surge Protector 220v dc ac surge protective device spd with a nominal flow capacity of over 60KA is suitable for lightning protection of the main power supply in important places;

HYKL 110V Surge Protector 220v dc ac surge protective device spd with a nominal flow capacity of 20KA-40KA is suitable for various power supply systems (such as ups power supply, machine room power supply, etc.). ) Lightning protection;

HYKL 110V Surge Protector 220v dc ac surge protective device spd with nominal flow capacity of 10KA.20KA is suitable for lightning protection of various equipment power supplies.

HYKL 110V Surge Protector 220v dc ac surge protective device spd is widely used in mobile communication base stations. Microwave Communications Bureau/Station. Telecommunications room. Industrial mining. civil aviation. financial. Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes

Packaging & Shipping

• Inside package is shrink wrapped, outside is Color cartons (The package for SPD is based on the customers' need).
• With pallet or without pallets depends customer requiments.
• Shipping, train, express or upon clients' demands.

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products.
