Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL220-40T
Certificate: CE ISO TUV CQC SGS
Warranty: 12 Months
Phase/Poe: 2P+PE
Rated Operating Voltage UC: Vac:220-460V; Vdc <=1.3KV
Continuous Voltage: 220Vac
Nominal Current In (8/20 us): 20KA
Max current Imax (8/20us): 40KA
Voltage protection level Up: <=1.9KV
Response times: <=25S
Test Standard: GB18802.1-2011 and IEC61643.1

Packaging & Delivery

Selling Units: Single item
Single package size: 10X10X10 cm
Single gross weight: 0.500 kg
Packaging Details: HYKL Class D/III 220Vac 20KA to 40KA Single Phase 2P Surge Protector SPD
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/ Corrugated carton
Port: Qingdao, Shanghai, Shenzhen, Ningbo, China

Lead Time:

Quantity (Sets)	1 - 500	>500
Est. Time (days)	5	To be negotiated

How to choose SPD:

How to choose the best suitable SPD Model:
The diagram above shows a building fitted with external lightning protection. The maximum lightning strike of 200kA 10/350μs which can strike the building will dissipate through the external lightning conductor system, 50% will go to earth via the earth rods. The remaining 50% will enter the building directly on to the main incoming panel as the external lightning protection system is cross-bonded to the main incoming earth bar. This is why it is mandatory to install a T1+2+3 combined lightning and surge arrester on the main incoming panel. The maximum rating of a combined lightning and surge arrester is 100kA 10/350μs.

If the building has sub-distribution boards more than 10 metres away from the incoming panel, these boards will require additional protection. Usually a Type 2 surge arrester is sufficient here unless you are feeding outside final circuits, when a combined Type 1+2+3 surge arrester will have to be fitted.

If you have any doubts please call our technical helpline direct on +86 139 6918 8486, Email: huayunspd(at)163.com

T2 spd Model

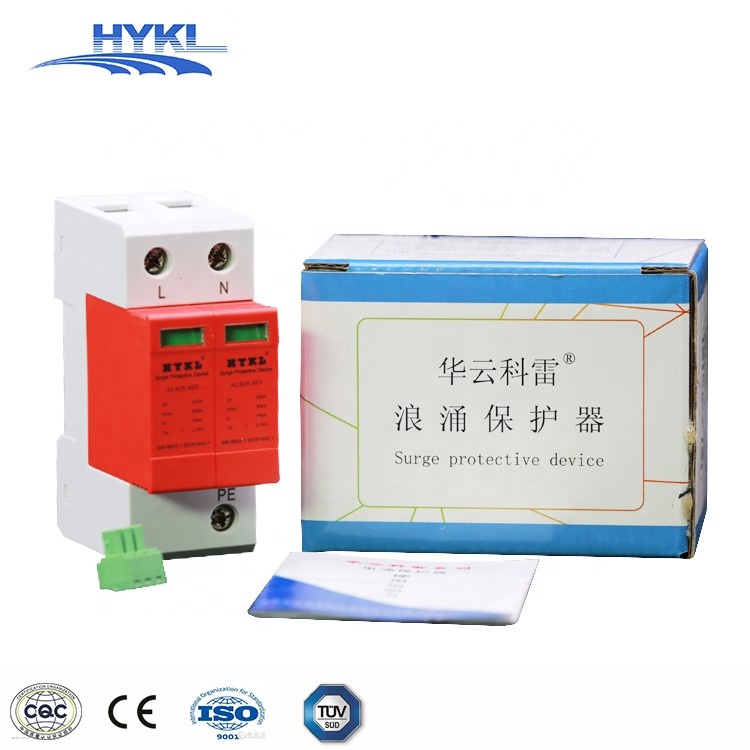

HYKL Class D/III 220Vac 20KA to 40KA Single Phase 2P Surge Protector SPD Features:

1: Selection of high-quality varistors, stable and reliable performance
2: High lightning current capability, ns response speed
3: Built-in overheat short-circuit device
4: Failure detection indication
5: Optional remote signaling interface and RS485 intelligent lightning protection module
6: 35mm rail mounting, standard modular design.
7: Energy saving, environmental protection, easy installation, no special maintenance

HYKL Class D/III 220Vac 20KA to 40KA Single Phase 2P Surge Protector SPD Technical Parameter

The SPD Specification	HYKL
	10I	15I	20I	35I	40I	50I	60I	65I	80I
Nominal discharge current In (KA, 8/20μs)	5	7.5	10	15	20	25	30	35	40
Max discharge currentImax (KA, 8/20μs)	10	15	20	35	40	50	60	65	80
Protection Level Up (KV)	0.7	1.0	1.5	1.5	1.8	1.8	1.91.9	1.9	2.2
Phase/ Pole	1P/ 2P/ 3P/ 4P+N PE
Rated operating Voltage	220V/ 230V/ 380V/ 400V   50-60Hz
Continuous operating Voltage	385/420V   50-60Hz
Response times	<=25NS
Max Connection Line	35mm2 hard/ strand wire copper line
Recommened connection Line	16mm2 hard/ strand wire copper line
Material of outer covering	Burning -proof Nylon Standard
Installation	Rail 35mm
Operatatin Environment	-40 degree to + 85 degree
Test standard	IEC61643-1/ GB18802-1
Protection Level	IP20

T2 Detail Image

T2 SPD Application

Packaging & Shipping

• Inside package is shrink wrapped, outside is Color cartons (The package for SPD is based on the customers' need).
• With pallet or without pallets depends customer requiments.
• Shipping, train, express or upon clients' demands.

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products.
