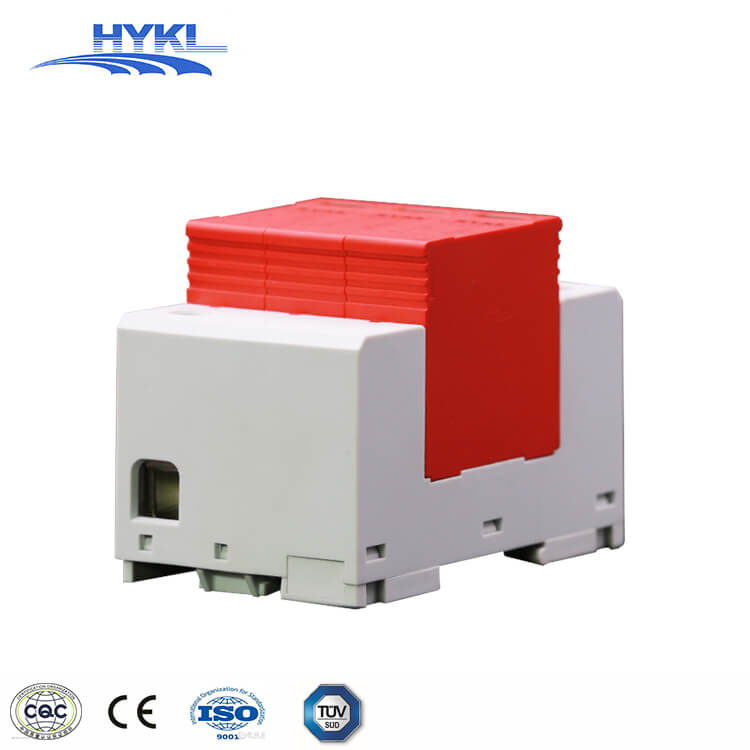

Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL1500-60T

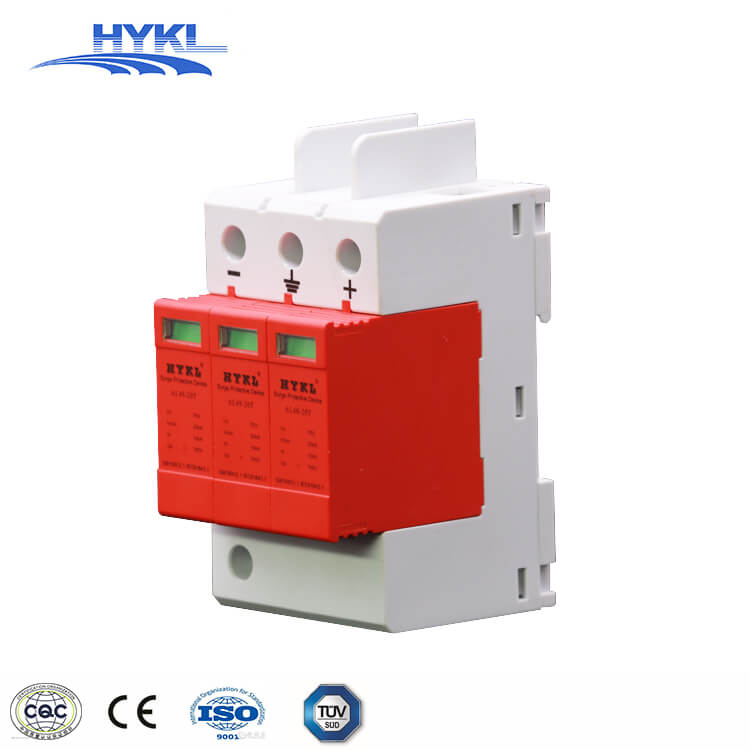

Product name: PV Solar1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device
Warranty: 2 Years
Material: Burning -proof Nylon (meet UL94V-0 standard)
Application: power distribution stations power distribution cabinets. Switch box
Maximum Continuous Voltage (UC): 1500V (can be customed)
Voltage Protection Up: <=4.5kv
Maximum Discharge Current (Imax): 30ka
Nominal Discharge Current (IN): 60ka
Test category: PV DC Solar Application
Response times: <=25S

Supply Ability

Supply Ability: 150000 Set/Sets per Month PV Solar1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD

Packaging & Delivery

Packaging Details: HYKL PV Solar Lightning Surge Suppressor 1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD
standard seaworthy package, 1pcs individual box,
10pcs in a middle box, 20boxes per carton. Base quotation is blank package.
OEM welcomed
Port: Qingdao,Shanghai, Shenzhen any port of China

Lead Time:

Quantity (Sets)	1 - 1000	>1000
Est. Time (days)	7	To be negotiated

Technical Parameter

•

• Model	AL1500-40T
  In	30ka
  Imax	60ka
  Iimp	25KA
  Continuous Voltage	1500v (It can be customed); 500v/ 800v/ 1000v/ 1500v etc

HYKL PV Solar Lightning Surge Suppressor 1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD General.

HYKL PV Solar Lightning Surge Suppressor 1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD DC series are Class C Surge Protection Devices, they designed to protect against lightning surge voltages in photovoltaic power supply networks. These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection.
HYKL PV Solar Lightning Surge Suppressor 1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD DC series are available for the main operating voltages in photovoltaic : 500, 600,800,900 and 1000 Vdc. The use of Class C Surge Protection Devices are recommended at both ends of the DC power supply line (solar panel side and inerverte/converter side), especially if the line routing is external and long.
HYKL PV Solar Lightning Surge Suppressor 1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD DC series are made with plug-in modules to allow a fast and easy maintenance in case of fa-ilure (disconnection from the DC network).

HYKL PV Solar Lightning Surge Suppressor 1500Vdc 30KA 60KA 2P 3 Pole Surge Protective Device SPD Other Module Recommend:

SPD Model	AL800	AL1000	AL1500V
Nominal Discharge Capacity (In)	20ka/ 30ka	20ka/ 30ka	20ka/ 30ka
Max Discharge Capacity (Imax)	40ka/ 60ka	40ka/ 60ka	40ka/ 60ka
Vac or Vdc	VDC

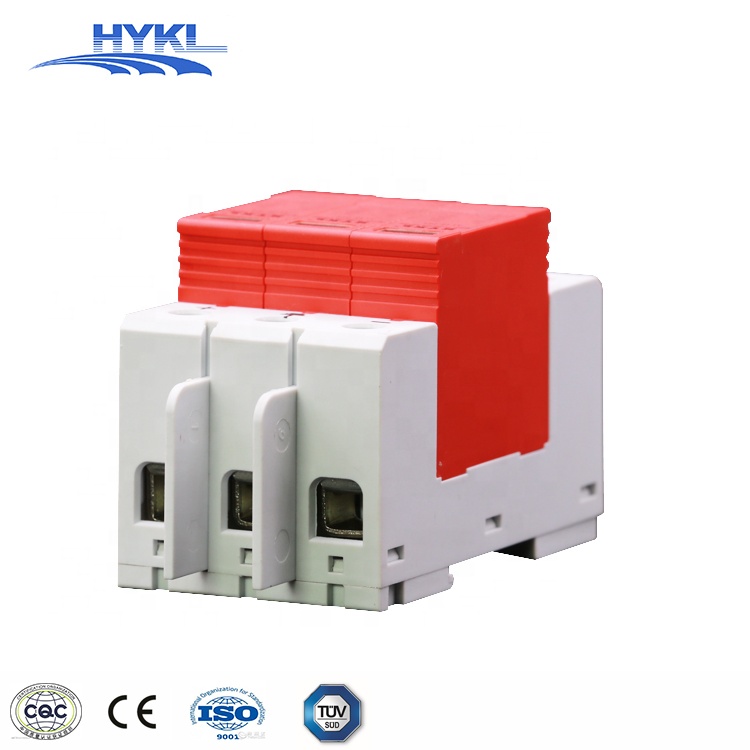

Pole	2P(+ -) 3P(+ -- -)
Uc	800v	1000v	1500v
Up	<=3.2kv/ 4.0kv	<=3.6kv/ 4.2kv	<=4.0KV/ 4.5kv
Ures (5ka)	<=2.8kv/ 3.0kv	<=2.8kv/ 4.2kv	<=2.8kv/ 4.5kv

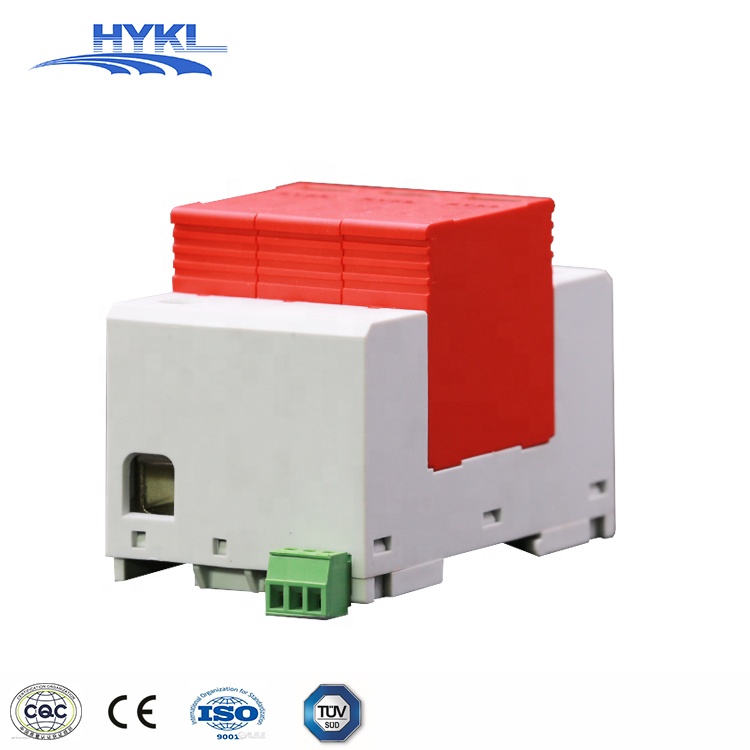

Signal Indicator	with or without is optional ; Green: Workable, Red: need to replace
Sheathing Material	Fire-retardant reinforced nylon(UL94V-0)
Recommend grounding wire	16MM2 multiple flexible conductor
Max backup protective fuse	80A gL / 125 A gL

Detail Image

•

  Flame retardant aluminum strip

•

  Varistor pre-installation test

•

  Hardware installation

•

  Varistor installation

•

  Inside structures

•

  Backup inside hardware installation

•

•

  SPD backup structure

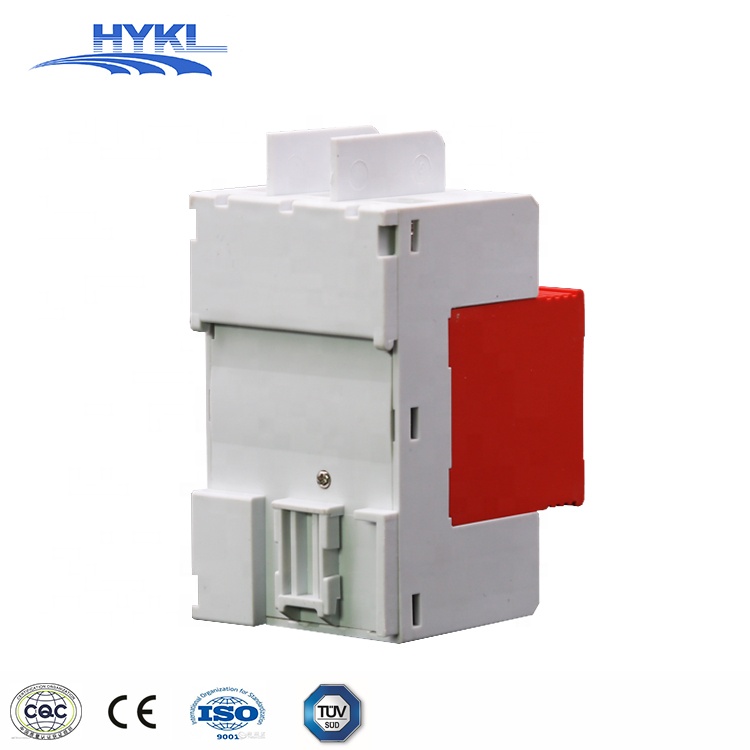

  35mm rail installation:
  Flexible buckle. easy installation and change.

SPD Installation

•
•

SPD Application

SPD widely used in mobile communication base stations. Microwave Communications Bureau/Station. Telecommunications room. Industrial mining. civil aviation. financial. Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes

•

  Electricity Distribution box

•

  whole house electrical application

•

  Solar/ Wind Power

•

  Water Power /hydropower

Quality Inspection

With strictly R&D /advanced ERP management system, efficient workers, and professional technical personnel. All of our surge protective device have passed ISO14001:2015, OHSAS18001:2007; ISO9001: 2015, CQC, TUV ,CE Certification

•

  Varistor testing

•

  12.5 50us combinatorial wave generator

•

  SPD Simulated Lightning current test platform

•

  SPD Routine Tests

•

  Test demonstration system of intelligent lightning protection device

•

  Programmable salt mist test machine
