Overview
Quick Details
Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL

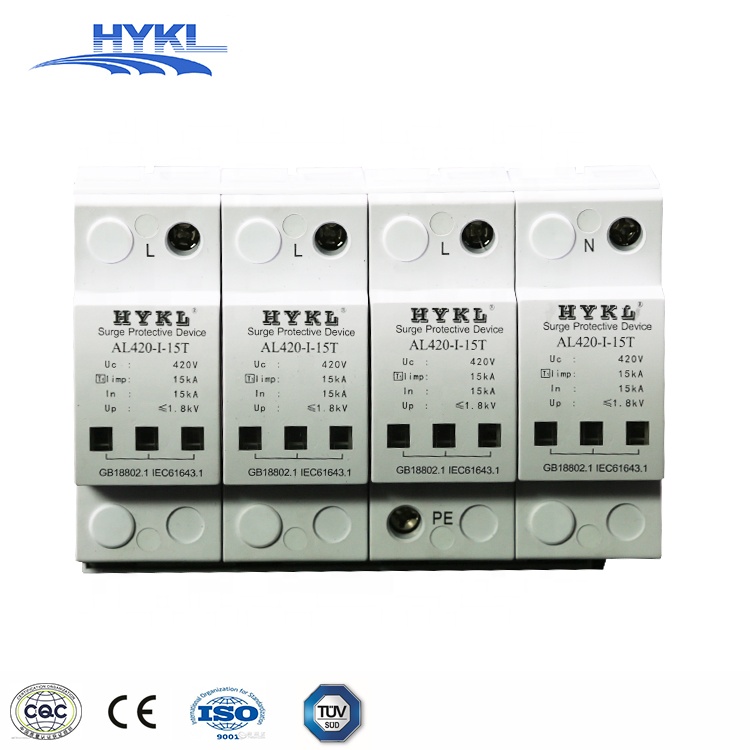

Product name: 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd
Warranty: 12 Months
Phrase/Pole: 4P (1P/2P/3P)+ NPE
Rated Operating Voltage Un: 220V/380V/400V 50-60Hz
Continuous Voltage: 420V
Lihgtning Impulse (limp): 15KA
Voltage protection level Up: <=1.5KV
Response times: <=25S
Test Standard: GB18802.1-2011 and IEC61643.1
Protection Degree: IP20
Supply Ability
Supply Ability: 1500000 Set/Sets per Month switch pv dc spd 40ka 100ka citel ac power supply spd
Packaging & Delivery
Packaging Details: HYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd standard seaworthy package, 1pcs individual box, 10pcs in a middle box, 20boxes per carton. Base quotation is blank package. OEM welcomed
Port: Qingdao, Shanghai China
Lead Time:
| Quantity (Sets) | 1 - 500 | 501 - 1000 | 1001 - 5000 | >5000 |
| Est. Time (days) | 3 | 7 | 15 | To be negotiated |
T1 Technology Data
HYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd Mainly Features:
1) Large discharge energy
2) Gap discharge without leakage current
3) High flame retardant, anti-corrosion
4) Standardized 35mm rail mounting
5) High quality graphite,Reliable quality and long service life
HYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd other model for choose.
| The SPD Specification | HYKL | ||||
| HYKL10/350-12.5I | HYKL10/350-15I | HYKL10/350-25I | HYKL10/350-40I | HYKL10/350-50I | |
| Lightning Impulse Current (Limp KA10/ 350μs) | 12.5KA | 15KA | 25KA | 40KA | 50KA |
| Voltage Protection Level (UP) | <=1.5kv | <=1.5kv | <=1.8kv | <=2.2kv | <=2.5kv |
| Phase/Pole | 1P(L/N); 2P(L+N); 3P(L1+L2+L3+PE); 4P(L1+L2+L3+N+PE) | ||||
| Rated operating Voltage | 380V/400V | ||||
| Continuous operating Voltage | 220v/235v/255v/275v/300v/400v/420v/470v/500v/600v ( it can be customed) | ||||
| Response times | <=25s | ||||
| Operatatin Environment | -40 degree to + 85 degree | ||||
| Installation | Rail 35mm | ||||
| Material of outer Covering | Burning -proof Nylon Standard | ||||
| Test standard | IEC61643-1/ GB18802-1 | ||||
| Dimension | 1P | 2P | 3P | 4P | |
| 18x60x90mm | 36x60x90mm | 54x60x90mm | 72x60x90mm | ||
| Protection Level | Class I /B/IP20 | ||||
Flame retardant aluminum strip
Varistor pre-installation test
Hardware installation
Varistor installation
Inside structures
Backup inside hardware installation
SPD backup structure

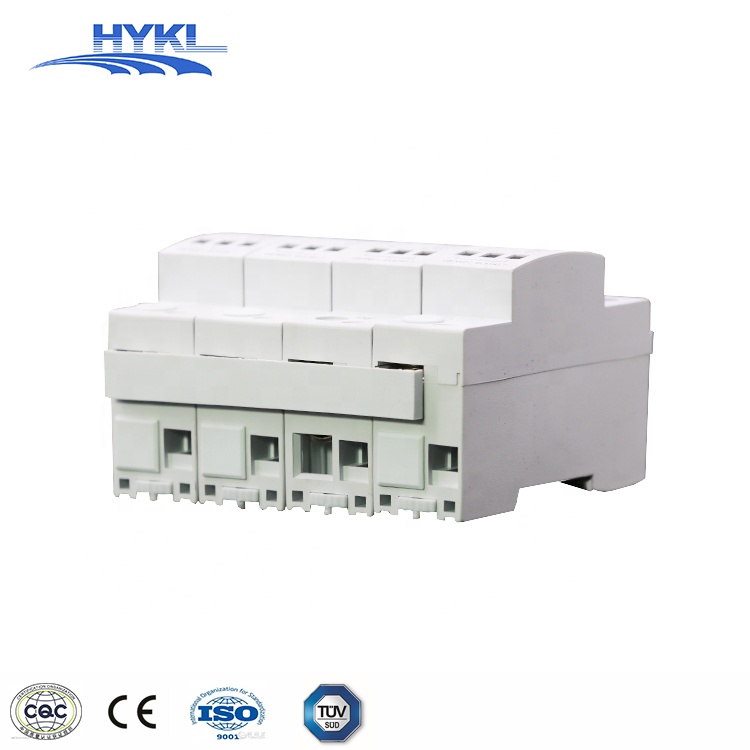

35mm rail installation:
Flexible buckle. easy installation and change.
SPD Installation
VHYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd Installation:
1: The power must be cut off before installation, no live operation
2: the surge protective device recommended to connect the fuse circuit breaker in front of the lightning protection SPD.
3: When surge protective device installing, please connect according to the installation diagram. L1 L2 L3 is the phase line and PE is the ground line. Do not connect wrongly. After the installation is completed, close the circuit breaker (fuse) switch and check that the working status is normal.
4: After surge protective device installation, insert the SPD in place and check whether the SPD is working properly.
5: During the surge protective device work situation,pls check and view the status of the fault display window regularly. If the window become red color or Remote signal output terminal alarm signal,pls replace the SPD.
6: Parallel power supply lightning protection modules should be installed in parallel, or they can be connected in double wiring. In general, just connect any of the two terminals (also Kevin wiring). The connection cable should be solid and reliable, and it must be short and straight.
HYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd Installation photo show:
SPD Application
HYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd Iimp (10/350) gap type surge protector with high lightning current capacity is suitable for the Class 1 lightning protection of the power system.
HYKL 600v 1000v 1500v switch pv dc spd 40ka 100ka citel ac power supply spd is widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.
Such as various power distribution stations, power distribution rooms, power distribution cabinets, switch boxes, and other equipment that are important and vulnerable to lightning strikes.

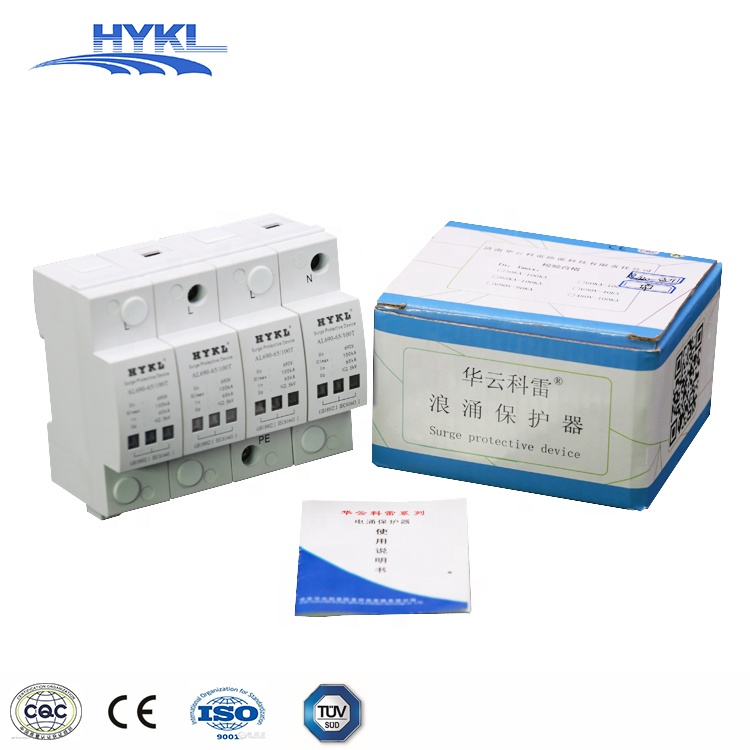

Packaging & Shipping
• Inside package is shrink wrapped, outside is Color cartons
• With pallet or without pallets depends customer requiments.
• Shipping, train, express or upon clients' demands.
Quality Inspection
In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products
Varistor testing
12.5 50us combinatorial wave generator
SPD Simulated Lightning current test platform
SPD Routine Tests
Test demonstration system of intelligent lightning protection device
Programmable salt mist test machine
HYKL Certification
With strict management, standardized production workshops, advanced ERP management system, efficient workers, and professional technical personnel. All of our surge protective device have passed ISO14001:2015, OHSAS18001:2007; ISO9001:2015,CQC, TUV,CE Certification
