Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL750-40T
Certificate: CE ISO TUV CQC SGS
Warranty: 12 Months
OEM ODM: Welcome over 12 years factory
SPD Nominal Operating Voltage Un: 220/255/275/380V
SPD Rated Operating Voltage UC: 750V
Nominal discharge current: 20KA
Max discharge current: 40KA
Voltage protection level Up: <=2.0KV
SPD test standard: GB18802.1-2011and IEC61643.1
SPD Response times: 25S

Packaging & Delivery

Supply Ability

Supply Ability: 150000 Set/Sets per Month 40ka SPD Surge Protector Device Surge Arrester

Packaging Details HYKL 2P L+N(PE) Uc 750v In 20ka Imax 40ka SPD Surge Protector Device Surge Arrester
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/Corrugated carton

Port: Qingdao China

Lead Time:

Quantity (Sets)	1 - 500	501 - 1000	1001 - 2000	>2000
Est. Time (days)	5	7	15	To be negotiated

Technical Parameter

•

• HYKL AC Line 750V 2P L+N(PE) Uc 750v In 20ka Imax 40ka SPD Surge Protector Device Surge Arrester Features:

  1) High energy surge protection,ns response speed
  2) Remote alarm interface
  3) High flame retardant, anti-corrosion
  4) Pluggable module design
  5) The built-in flash interrupter device

HYKL AC Line 750V 2P L+N(PE) Uc 750v In 20ka Imax 40ka SPD Surge Protector Device Surge Arrester other model for choose.

SPD Model	65I	80I	50-100I	60-100I	65-100I
Nominal Capacity (In)	35ka	40KA	50KA	60KA	65KA
Max Capacity (Max)	65KA	80KA	100KA	100KA	100KA
Protection Voltage (Up)	<=2.0kv	<=2.2kv	<=2.5kv	<=2.5kv	<=2.5kv
Continuous Voltage (Uc)	220v/235v/255v/275v/300v/400v/420v/470v/500v/600v ( it can be customed)
Phase/Pole	1P(L/N) ;2P(L+N);3P(L1+L2+L3+PE);4P(L1+L2+L3+N+PE)
Installation	Rail 35mm
Material of outer covering	Burning -proof Nylon Standard/High flame retardant, anti-corrosion
Response time	<=25s
Operation environment	40 degree to + 85 degree
Dimension	1P		2P	3P	4P
	18 (27)x60x90mm		36 (54)x60x90mm	54 (81)x60x90mm	72 (108)x60x90m

Detail Image

•

  Varistor pre-installation test

•

  Encapsulated sheet varistor

•

  Glue sub-resistance varistor

•

  Hardware installation

•

  Backup inside hardware installation

•

  Finished SPD backup
  1P/(L/N), 2P(L+N), 3P(L1+L2+L3), 4P(L1+L2+L3+N)

•

  Pluggable module design

•

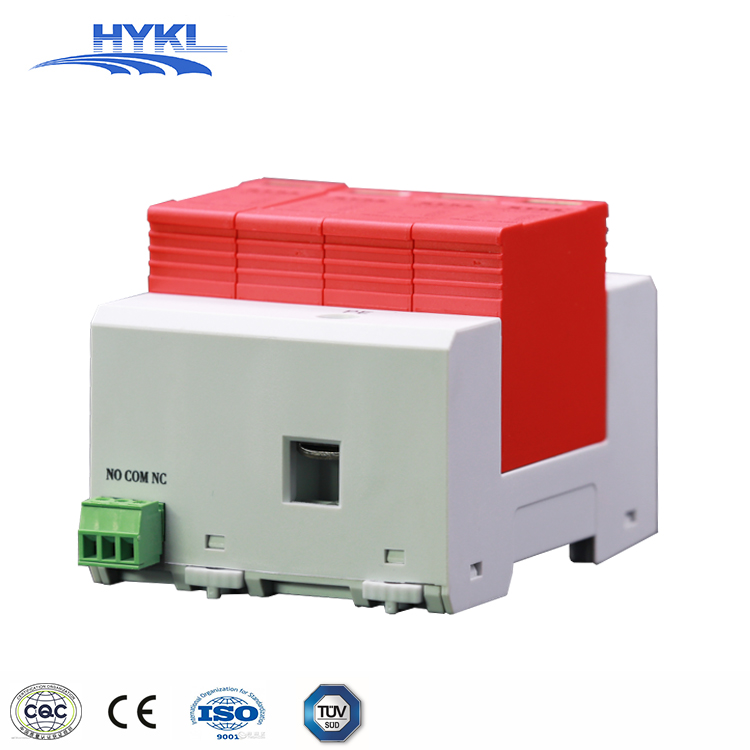

  Green Parts: signal terminal
  Window indicator: Green ( workable)
  Red: Re-place connect with the Terminal Equipment.
  If the surge protective device not work, it will be alarm.

SPD Application

HYKL AC Line 750V 2P L+N(PE) Uc 750v In 20ka Imax 40ka SPD Surge Protector Device Surge Arrester whole house plug emf 10kv led surge protection device with a nominal flow capacity of over 60KA is suitable for lightning protection of the main power supply in important places;
HYKL AC Line 750V 2P L+N(PE) Uc 750v In 20ka Imax 40ka SPD Surge Protector Device Surge Arrester with nominal flow capacity of 10KA.20KA is suitable for lightning protection of various equipment power supplies.
HYKL AC Line 750V 2P L+N(PE) Uc 750v In 20ka Imax 40ka SPD Surge Protector Device Surge Arrester is widely used in mobile communication base stations. Microwave Communications Bureau/Station. Telecommunications room. Industrial mining. civil aviation. financial. Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes

•
•
•

Package& Shipment

• Inside package is shrink wrapped, outside is Color cartons
• With pallet or without pallets depends customer requiments.
• Shipping, train, express or upon clients' demands.

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products

•

  Varistor testing

•

  12.5 50us combinatorial wave generator

•

  SPD Simulated Lightning current test platform

•

  SPD Routine Tests

•

  Test demonstration system of intelligent lightning protection device

•

  Programmable salt mist test machine
