Overview
Quick Details
Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: Type 2 Class B Series
Product name: type 2 series 65ka 80ka 100ka Surge Protective Device
Warranty: 2 Years
Material: Burning -proof Nylon (meet UL94V-0 standard)
Application: power distribution stations power distribution cabinets. Switch box
Maximum Continuous Voltage (UC): 420V (can be customed)
Voltage Protection Up: <=2.0kv
Maximum Discharge Current (Imax): 35ka
Nominal Discharge Current (IN): 65ka
Test category: PV DC Solar Application
Response times: <=25S
Packaging & Delivery
Supply Ability
Supply Ability: 150000 Set/Sets per Month type 2 series 65ka 80ka 100ka Surge Protective Device
Packaging Details HYKL electrical installation protection system type 2 series 65ka 80ka 100ka Surge Protective Device
standard seaworthy package, 1pcs individual box,
10pcs in a middle box, 20boxes per carton. Base quotation is blank package.
OEM welcomed
Port: Qingdao, Shanghai, Shenzhen any port of China
Lead Time:
Quantity (Sets) | 1 - 1000 | >1000 |
Est. Time (days) | 7 | To be negotiated |
Technical Parameter
Type 2 Series
Phase: L+L2+L3+N (3P)
In: 35/40/50/60/65KA
Imax: 65/80/100ka
Up: <=2.0kv
Application: mobile communication base stations. Microwave Communications Bureau/ Station
HYKL Class II Surge Protector Device other model for choose.
SPD Model | 65I | 80I | 50-100I | 60-100I | 65-100I |
Nominal Capacity (In) | 35ka | 40KA | 50KA | 60KA | 65KA |
Max Capacity (Max) | 65KA | 80KA | 100KA | 100KA | 100KA |
Protection Voltage (Up) | 2.0kv | 2.2kv | 2.5kv | 2.5kv | 2.5kv |
Continuous Voltage (Uc) | 220v/235v/255v/275v/300v/400v/420v/470v/500v/600v ( it can be customed) | ||||
Phase/Pole | 1P(L/N) ;2P(L+N);3P(L1+L2+L3+PE);4P(L1+L2+L3+N+PE) | ||||
Installation | Rail 35mm | ||||
Material of outer covering | Burning -proof Nylon Standard/High flame retardant, anti-corrosion | ||||
Response time | <=25s | ||||
Operation environment | 40 degree to + 85 degree | ||||
Dimension | 1P | 2P | 3P | 4P | |
18 (27)x60x90mm | 36 (54)x60x90mm | 54 (81)x60x90mm | 72 (108)x60x90m |
Detail Image
-
Hardware installation
-
Encapsulated sheet varistor
-
Backup inside hardware installation

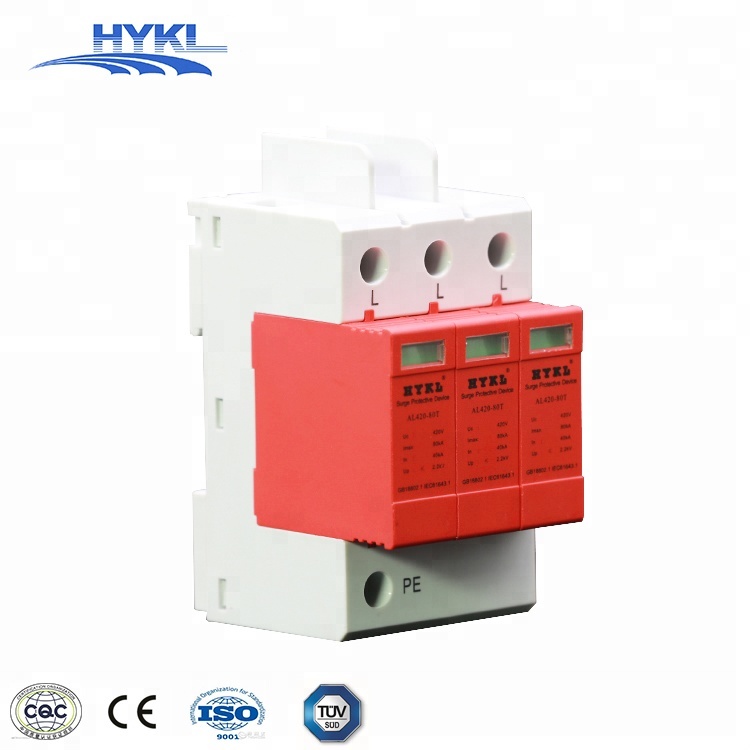

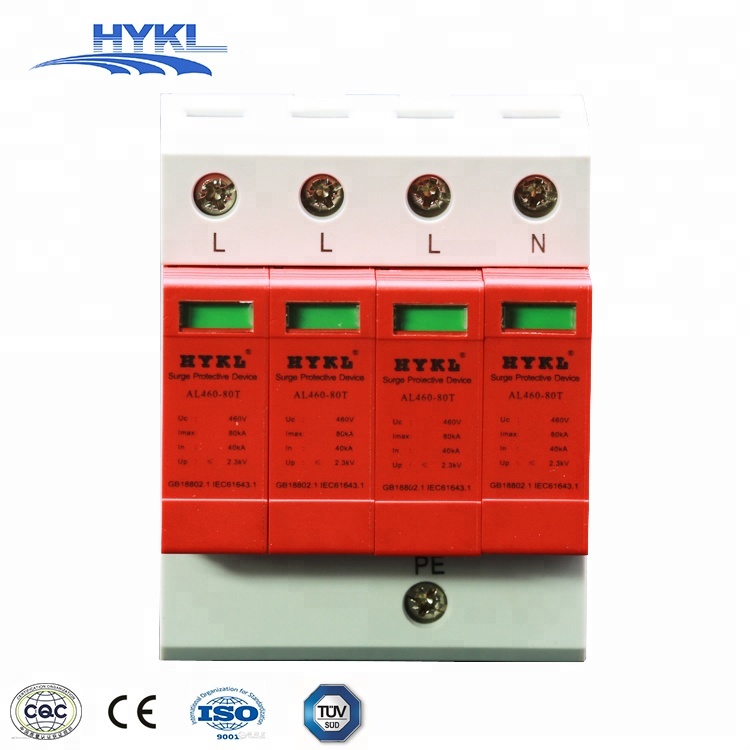

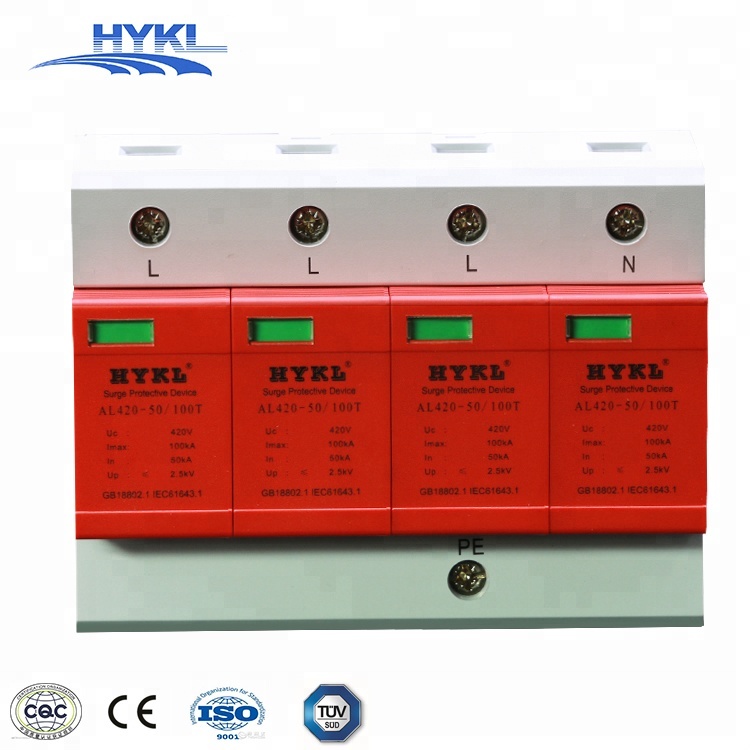

1P/(L/N), 2P(L+N), 3P(L1+L2+L3), 4P(L1+L2+L3+N) -
Finished SPD backup
1P/(L/N), 2P(L+N), 3P(L1+L2+L3), 4P(L1+L2+L3+N) -

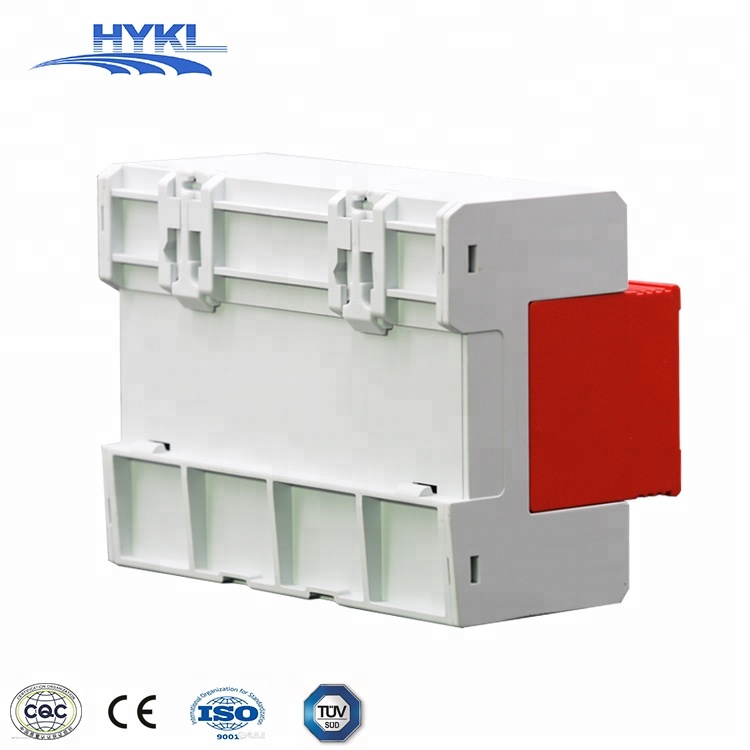

Pluggable module design
-
Pluggable module design
-
35mm rail installation:
Flexible buckle. easy installation and change. -
Green Parts: signal terminal
Window indicator: Green ( workable)
Red: Re-place connect with the Terminal Equipment.
If the surge protective device not work, it will be alarm.
SPD Installation
SPD Application
SPD widely used in mobile communication base stations. Microwave Communications Bureau/Station. Telecommunications room. Industrial mining. civil aviation. financial. Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes
-

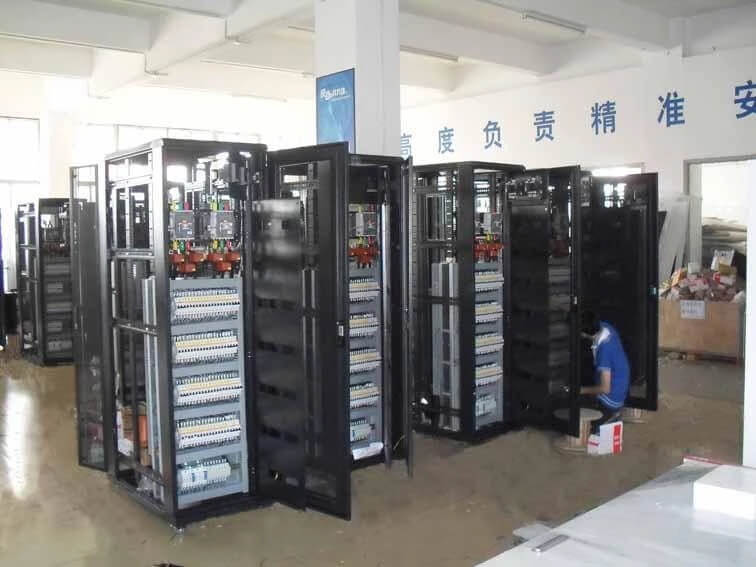

Electricity Distribution box
-

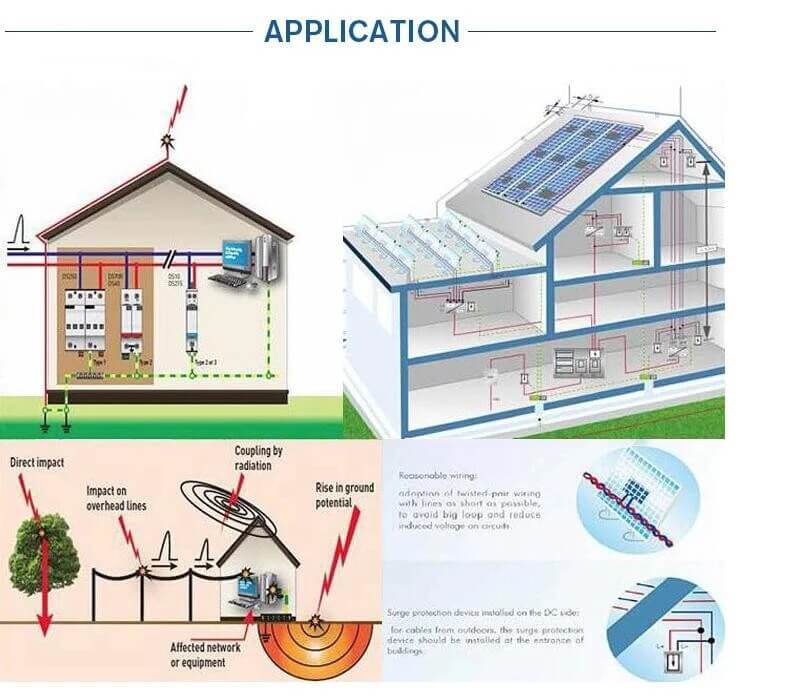

Whole house electrical application
-

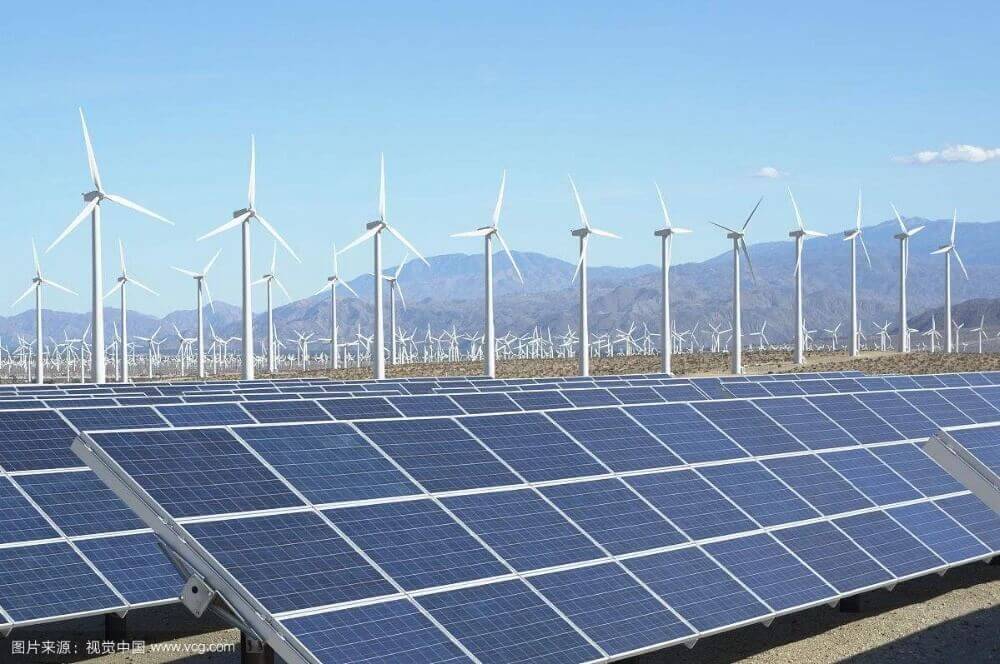

Solar/ Wind Power
-

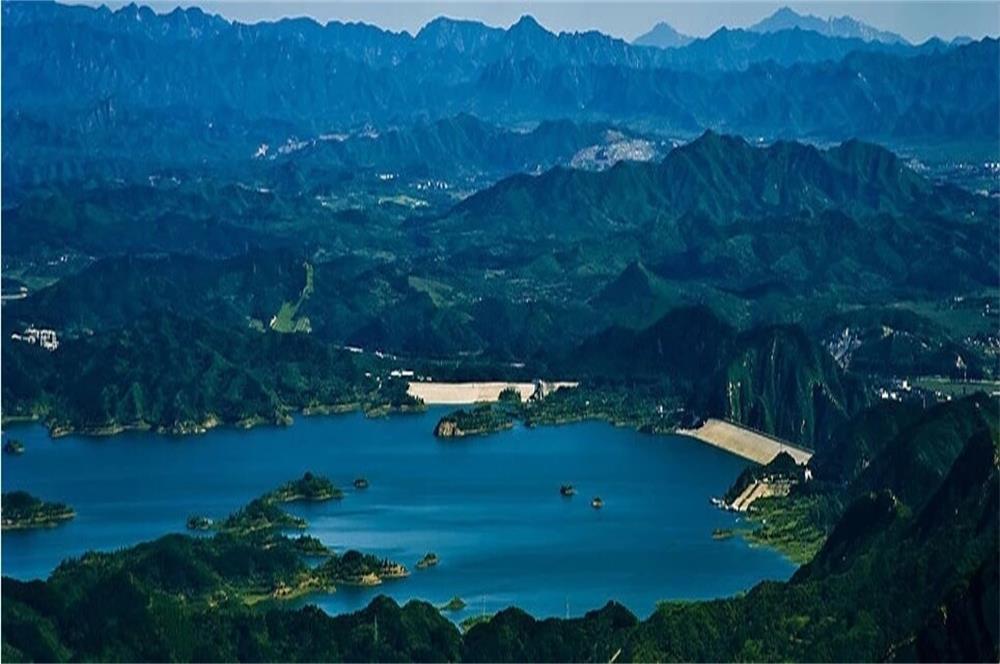

Water Power /hydropower
Quality Inspection
Electricity Distribution box
Whole house electrical application
Solar/ Wind Power
Water Power /hydropower
With strictly R&D /advanced ERP management system, efficient workers, and professional technical personnel. All of our surge protective device have passed ISO14001:2015, OHSAS18001:2007; ISO9001: 2015, CQC, TUV ,CE Certification
-
Varistor testing
-
12.5 50us combinatorial wave generator
-
SPD Simulated Lightning current test platform
-
SPD Routine Tests
-
Test demonstration system of intelligent lightning protection device
-
Programmable salt mist test machine
