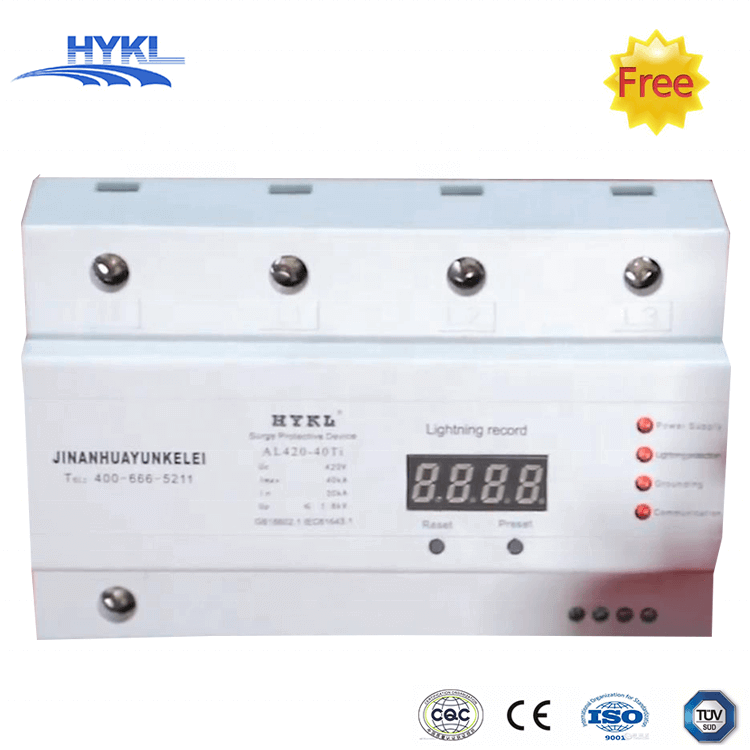

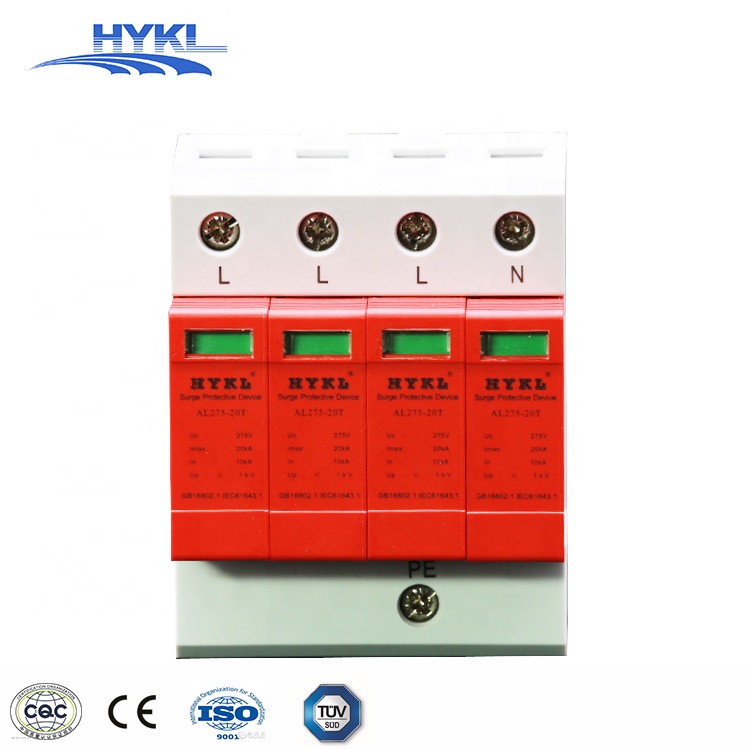

HYKL 3P+NPE In20KA Imax 40KA 220v Surge Protector Surge Protective Device Smart SPD
HYKL 3P+NPE In20KA Imax 40KA 220v Surge Protector Surge Protective Device Smart SPD
  • Features
  • Inquiry

Overview

Quick Details

Place of Origin: Shandong, China
Brand Name: HYKL
Model Number: AL420-40TI
Certificate: CE TUV CQC ISO
Warranty: 2 YAERS
OEM/ODM: Welcome, China No.1 professional Factory
Export to: Germany Spaina, Netherlands over 30 countries
Continuous Voltage: 420V/150V (any)
In: 20KA
Imax: 40KA
Voltage protection level Up: <=1.8KV
Response times: <=25S
Test Standard: GB18802.1-2011and IEC61643.1

Supply Ability

Supply Ability: 1500000 Set/Sets per Month HYKL 3P+NPE In20KA Imax 40KA 220v Surge Protector

Packaging & Delivery

Packaging Details HYKL 3P+NPE In20KA Imax 40KA 220v Surge Protector
1) Inside Shrink wrapped per sets
2) outside 1 sets /color carton
3) general 30-50 small color carton/Corrugated carton

Port: Qingdao Shanghai Yiwu China

Lead Time:

Quantity (Sets) 1 - 1000 1001 - 3000 3001 - 5000 >5000
Est. Time (days) 7 15 30 To be negotiated

HYKL 3P+NPE In20KA Imax 40KA 220v Surge Protector

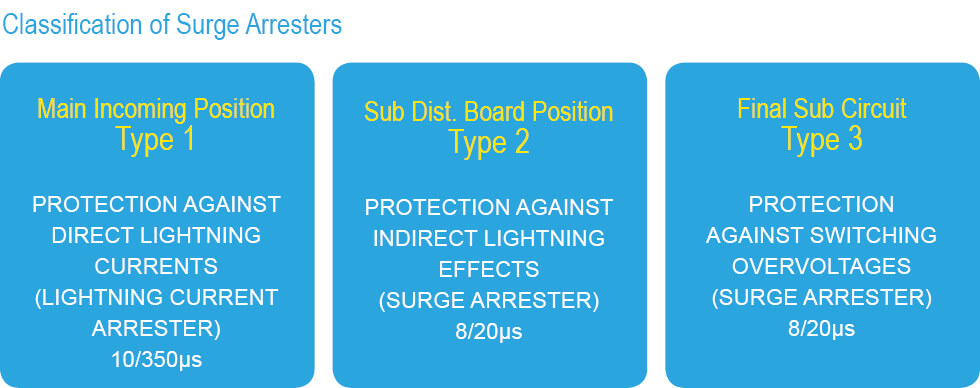

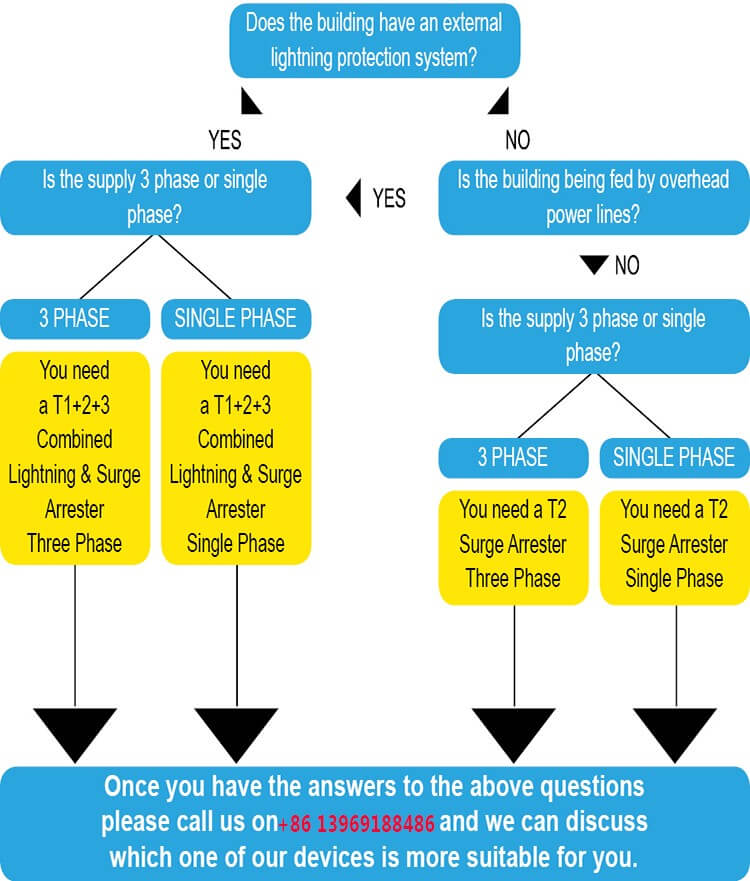

How to choose SPD

How to choose the best suitable SPD Model:

The diagram above shows a building fitted with external lightning protection. The maximum lightning strike of 200kA 10/350μs which can strike the building will dissipate through the external lightning conductor system, 50% will go to earth via the earth rods. The remaining 50% will enter the building directly on to the main incoming panel as the external lightning protection system is cross-bonded to the main incoming earth bar. This is why it is mandatory to install a T1+2+3 combined lightning and surge arrester on the main incoming panel. The maximum rating of a combined lightning and surge arrester is 100kA 10/350μs.

If the building has sub-distribution boards more than 10 metres away from the incoming panel, these boards will require additional protection. Usually a Type 2 surge arrester is sufficient here unless you are feeding outside final circuits, when a combined Type 1+2+3 surge arrester will have to be fitted.

If you have any doubts please call our technical helpline direct on +86 139 6918 8486, Email: huayunspd(at)163.com

Product Description

Mainly Features

1: Lightning count function, when struck by lightning, second level alarm;
2: SPD degradation alarm;
3: Empty state detection;
4: RS485 communication;
5: When SPD is abnormal, the second level alarm, the SPD degradation and the sending time are sent to the maintainer's mobile phone by SMS;
6: You can connect to a backend server, and within the network, computers and smartphones can remotely monitor any SPD.

HYKL 3p+NPE 40kA 150Vac Type 1 / class I/Class B surge protector Basic Technical Parameter

HYKL Model No AL420- 40TI
EC Category/EN Type Type 2/Class II/B
Communication Mode RS-485
Nominal Voltage (VAC) UN 220/ 230/ 400Vac
Max Continuous Operating Voltage (Vac) Uc 420V ( Its customed)
Nominal Discharge Current In 20KA
Max Discharge Current: 8/20 Us current wave Imax 40KA
Voltage Protection Level Up Up <=1.8KV
Respons Time <=25ns
Power supply system TT IT TN
Format Monobloc surge protector
Min. conductor cross section at terminals 10mm² solid/flexible
Max. conductor cross section 50mm² stranded/ 35mm² flexible
Installation Symmetrical rail 35 mm (EN60715)
Enclosure material PA66 nylon material and PBT engineering plastics, Thermoplastic UL94-V0
Operating temperature range TU -40 - +80 °C
Degree of protection (IEC EN 60529) IP20
Dimension (DIN 43880) 108X 68X 90MM
Remote Signalling Optional( Depends customer require)
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 ed.4/ GB 18802.1

1: The surge protector is intelligent;
2: Lightning count function;
3: SPD degradation alarm,Empty state detection;
4: You can connect to a backend server, and within the network, computers and smartphones can remotely monitor any SPD

Packaging & Shipping

• Inside package is shrink wrapped, outside is Color cartons (The package for SPD is based on the customers' need).
• With pallet or without pallets depends customer requiments.
• Shipping, train, express or upon clients' demands.

Quality Inspection

In our company, we have first-class laboratories and R&D platform: Lightening Simulation Laboratory of 8/20us150KA compatible with 10/350us50kA, Pressure Sensitive Resistance Tester, Combination Wave Generator of 1.2/50us, Voltage Generator of 1.2/50us, Clearance and Discharge Tube Detector, Remote Signal Detector, Thermal Stability Test System, Lightning Online Monitoring System, Intelligent Lightning Protection Detection System, the Frequency Current Test of SPD Backup Protector, Lightning Current Test System and so on. All of these advanced detection equipment ensure the security and stability of the products.
