Overview

Basic Info.

Model NO.	AL750-PV-40T
Shape	Cuboid
Material	ZnO
Certification	ISO9001, Ce
Brand	Hykl
UC	750VDC
Imax	40ka
in	20ka
up	2.4kv
Test Standard	IEC61643.1
Response Times	25s
Name1	SPD
Name2	Surge Protection Device
Name3	Surge Suppressor
Name4	Overvoltage Protector
GB	GB18802.1
Trademark	HYKL
Transport Package	Carton
Specification	72*60*90mm
Origin	Shandong
HS Code	8536300000

Product Description

AL12VAC/DC-1500VAC/DC series surge protectors are suitable for new energy solar power generation systems with working voltages of 12V -1500V and ordinary AC power supply lightning and surge protection systems. The installation position is in the entire power supply system of the DC/AC circuit to protect the impact of indirect lightning current, DC lightning current or other transient overvoltages and transient surges.

Product capability parameter
Module	AL750-40T	AL1000-PV-20T	AL420-I-40T
Pole	1p,2p,3p,4p	1p,2p,3p,4p	1p,2p,3p,4p
Maximum continuous operating voltage Uc	750V	1000V	420V
Voltage protection level Up	<2.4kV	<3.6kV	<2.2kV
Limp(10/350)	-	20KA	40KA
Nominal discharge current In(8/20μs)	20kA	10KA	20KA
Maximum discharge current Imax(8/20μs)	40kA	20kA	40kA
Sheathing material	Fire-retardant reinforced nylon
Recommended area of grounding wire	16mm2 multiple flexible conductor
Max backup protective fuse	80 A gL
Clearance and creepage distance	>25mm
Protection grade	IP20
Normal working temperature	-40ºC~80ºC

Model	AL1000-PV-20T, AL420-I-40T, AL750-40T
Color	White and Blue/Red
Certification	SGS,CE,ISO
Purpose	AL12VAC/DC-1500VAC/DC series surge protectors are suitable for new energy solar power generation systems with working voltages of 12V -1500V and ordinary AC power supply lightning and surge protection systems. The installation position is in the entire power supply system of the DC/AC circuit to protect the impact of indirect lightning current, DC lightning current or other transient overvoltages and transient surges.
Function	In order to shunt and pressure to limit indirect lightning current, direct lightning current or other instantaneous overvoltage. And to protect against the destructive impact of instant high-voltage surges caused by alternating current.

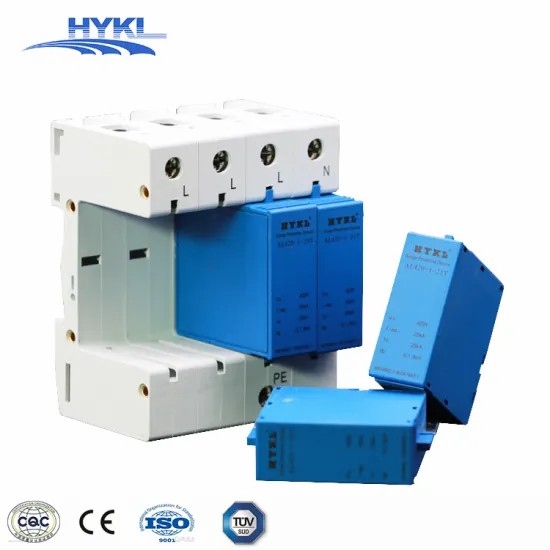

Characteristic	1. Surge protective device, plug. 2. The visual window color said protector working state; green(normal), red(fault). 3. Hot melt flow double protection. 4. The configuration remote communication interface,can realize remote control.
Product Highlights	1. Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement. 2. No load current is considered; plug and pull design, can be charged replacement, easy to maintain. 3. Built-in temperature control circuit technology, high safety performance, no after flow. 4. Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish. 5. Optional remote monitoring interface can be used for remote monitoring. 6. High working voltages, high pass flow, high safety performance and high stability.
Advantage	1. Over 10 years experience in production and processing 2. faster product innovation, production specialization, timely delivery 3. Strict quality inspection procedure

Product Details
