Overview

Basic Info.

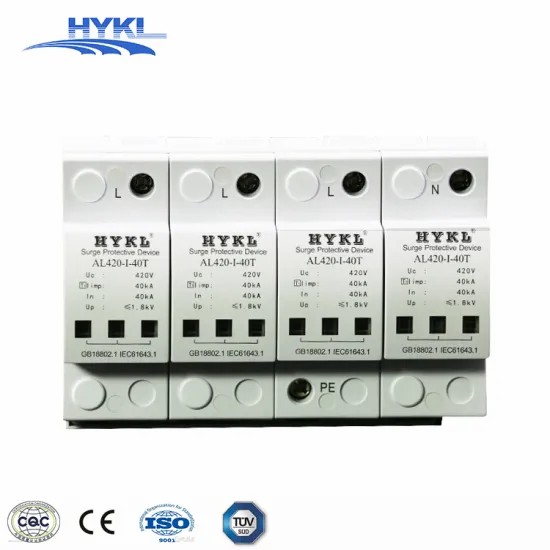

Model NO. AL420-I-40T
Shape Cuboid
Material ZnO
Certification ISO9001, Ce
Brand Hykl
UC 460VAC
limp 40ka
in 40ka
up 1.8kv
Test Standard IEC61643.1
Response Times 25s
Name1 SPD
Name2 Surge Protection Device
Name3 Surge Suppressor
Name4 Overvoltage Protector
GB GB18802.1
Trademark HYKL
Transport Package Carton
Specification 144*66*90mm
Origin Shandong
HS Code 8536300000

Product Description

AL12VAC/DC-1500VAC/DC series surge protectors are suitable for new energy solar power generation systems with working voltages of 12V -1500V and ordinary AC power supply lightning and surge protection systems. The installation position is in the entire power supply system of the DC/AC circuit to protect the impact of indirect lightning current, DC lightning current or other transient overvoltages and transient surges.

Product capability parameter
Product modelAL750-40TAL1000-PV-20TAL420-I-40T
Pole1p,2p,3p,4p1p,2p,3p,4p1p,2p,3p,4p
Maximum continuous operating voltage Uc750V1000V420V
Voltage protection level Up<2.4kV<3.6kV<2.2kV
Limp(10/350)-20KA40KA
Nominal discharge current In(8/20μs)20kA10kA20kA
Maximum discharge current Imax(8/20μs)40kA20kA40kA
Sheathing materialFire-retardant reinforced nylon
Recommended area
of grounding wire
16mm2
multiple flexible conductor
Max backup protective fuse80 A gL
Clearance and creepage distance>25mm
Protection grade

IP20

Normal working temperature-40ºC~80ºC
ModelAL1000-PV-20T, AL420-I-40T, AL750-40T
ColorWhite and Blue/Red
CertificationSGS,CE,ISO
PurposeAL12VAC/DC-1500VAC/DC series surge protectors are suitable for new energy solar power generation systems with working voltages of 12V -1500V and ordinary AC power supply lightning and surge protection systems. The installation position is in the entire power supply system of the DC/AC circuit to protect the impact of indirect lightning current, DC lightning current or other transient overvoltages and transient surges.
FunctionIn order to shunt and pressure to limit indirect lightning current, direct lightning current or other instantaneous overvoltage. And to protect against the destructive impact of instant high-voltage surges caused by alternating current.
Characteristic1. Surge protective device, plug.
2. The visual window color said protector working state; green(normal), red(fault).
3. Hot melt flow double protection.
4. The configuration remote communication interface, can realize remote control.
Product Highlights1. Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement.
2. No load current is considered; plug and pull design, can be charged replacement, easy to maintain.
3. Built-in temperature control circuit technology, high safety performance, no after flow.
4. Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
5. Optional remote monitoring interface can be used for remote monitoring.
6. High working voltages, high pass flow, high safety performance and high stability.
Advantage1. Over 10 years experience in production and processing
2. faster product innovation, production specialization, timely delivery
3. Strict quality inspection procedure

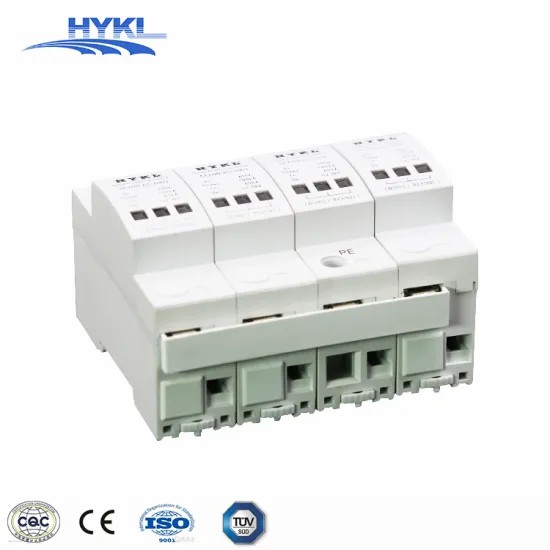

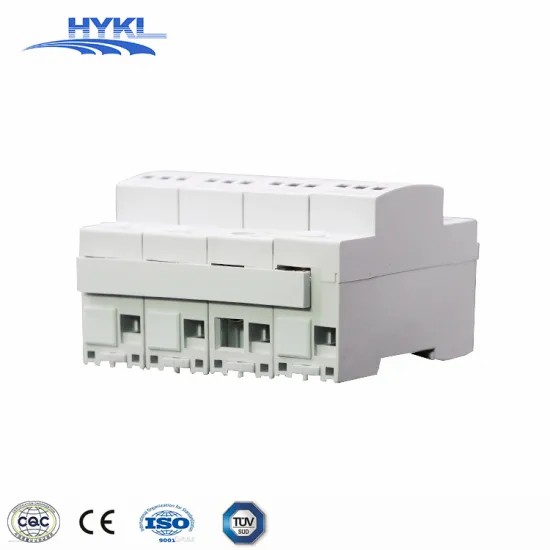

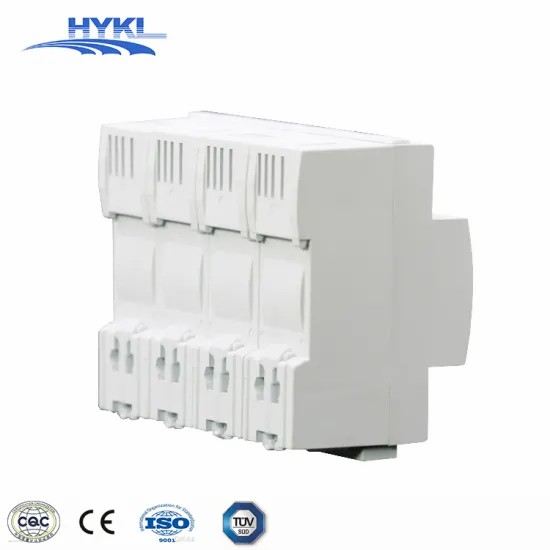

Product Details
